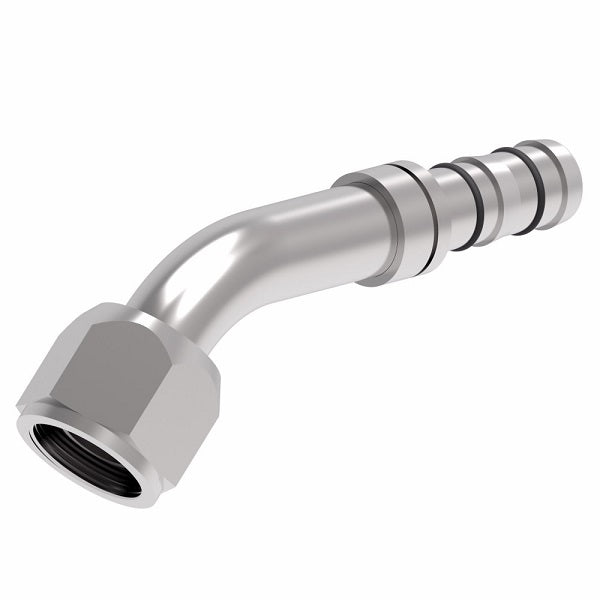

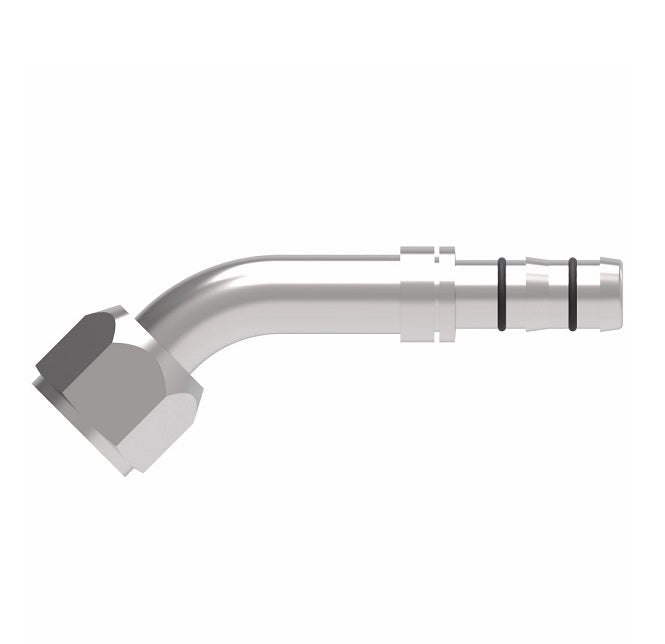

FJ3192-02-1212S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread 45° Elbow | A/C Refrigeration Fitting | M27 Female O-Ring Long Pilot x -12 Hose Barb | Steel

FJ3192-02-1212S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread 45° Elbow | A/C Refrigeration Fitting | M27 Female O-Ring Long Pilot x -12 Hose Barb | Steel

$85.41 - $85.41
$85.41
$85.41 - $85.41
$85.41

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) Metric Thread - 45° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3192-02-1212S Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: M27 Female O-Ring Long Pilot, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3192-02-1212S M27 x 2 -12 4.74" 3.17" 1.47" 1.25" FF14174 22546-17 FF90178-17
