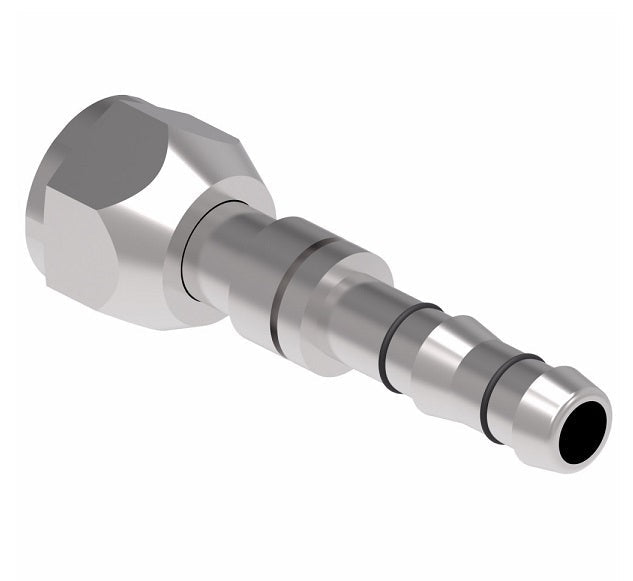

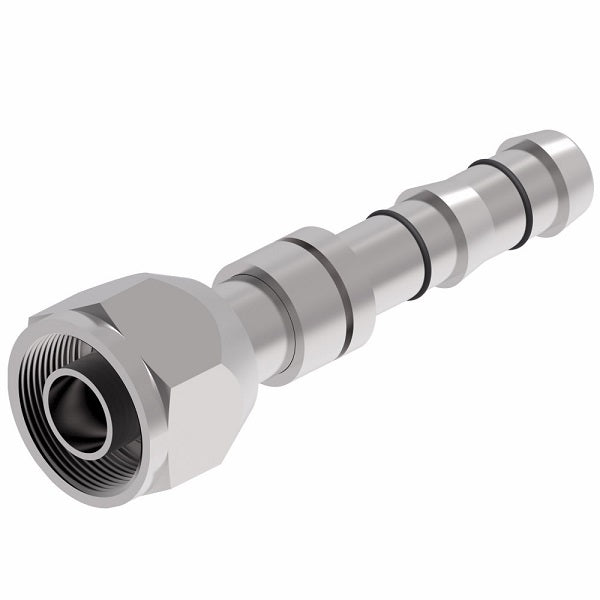

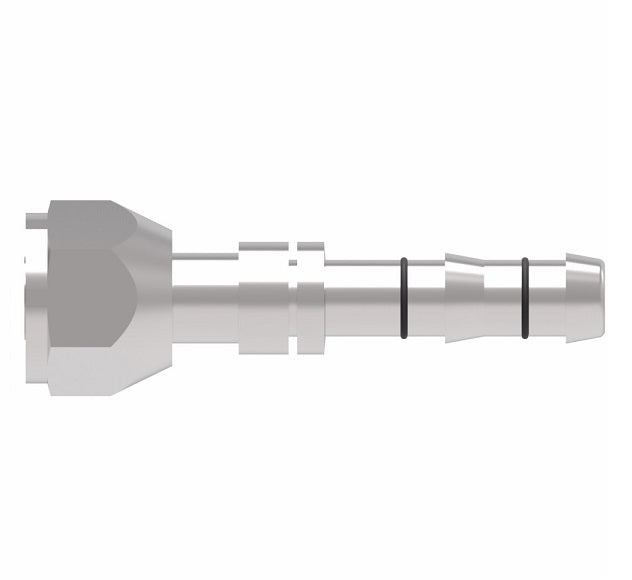

FJ3408-0810S E-Z Clip System by Danfoss | Female O-Ring Metric (Long Pilot) | A/C Refrigeration Fitting | -08 Female O-Ring Metric Long Pilot x -10 Hose Barb | Steel

FJ3408-0810S E-Z Clip System by Danfoss | Female O-Ring Metric (Long Pilot) | A/C Refrigeration Fitting | -08 Female O-Ring Metric Long Pilot x -10 Hose Barb | Steel

Name: FJ3408-0810S E-Z Clip System by Danfoss | Female O-Ring Metric (Long Pilot) | A/C Refrigeration Fitting | -08 Female O-Ring Metric Long Pilot x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3408-0810S Danfoss
Price: 38.97 USD
Availability: InStock

$38.97 - $38.97

$38.97

$38.97 - $38.97

$38.97

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring Metric (Long Pilot) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: FJ3408-0810S Danfoss
Brand:	E-Z Clip
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	Ref.	Clip & Cage Kit (Required)	O-Ring Options
Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	Ref.	Clip & Cage Kit (Required)	Neoprene	Green HNBR
FJ3408-0808S	M20 x 1.5	-08	3.20"	1.66"	0.94"	FF14172	22546-13	FF90178-13
FJ3408-0810S	M20 x 1.5	-10	3.21"	1.66"	0.94"	FF14173	22546-13	FF90178-13
FJ3408-1212S	M27 x 2	-12	4.25"	2.67"	1.25"	FF14174	22546-17	FF90178-17

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
