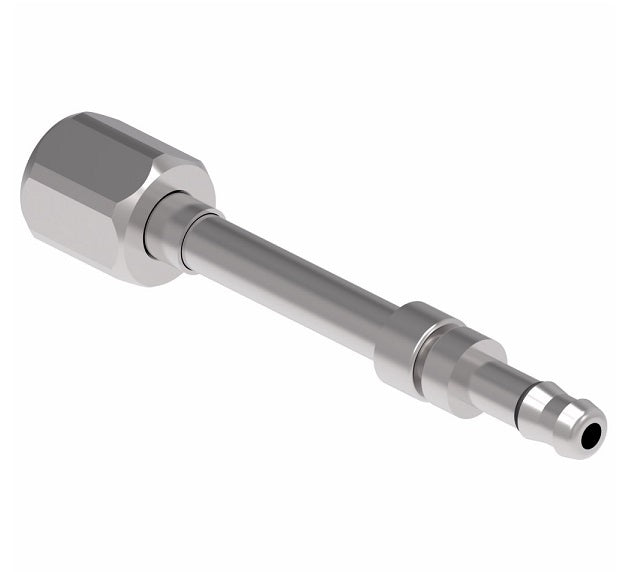

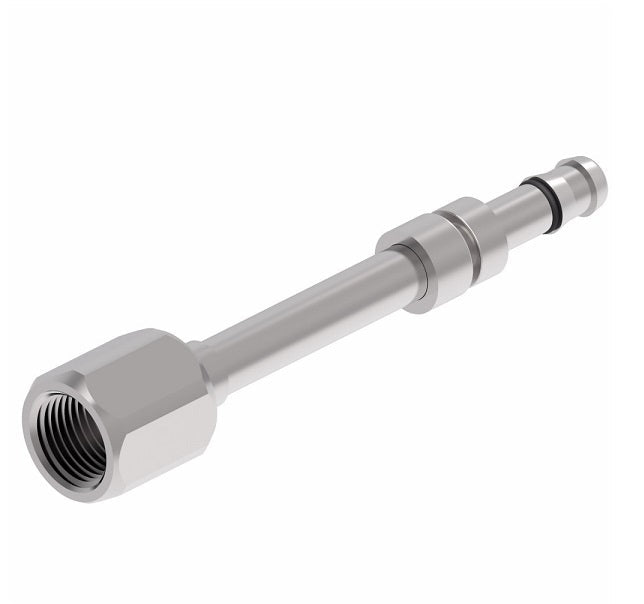

FJ3731-1010S E-Z Clip System by Danfoss | Female JIC 37° Flare | A/C Refrigeration Fitting | -10 Female JIC 37° Flare x -10 Hose Barb| Steel

FJ3731-1010S E-Z Clip System by Danfoss | Female JIC 37° Flare | A/C Refrigeration Fitting | -10 Female JIC 37° Flare x -10 Hose Barb | Steel

Name: FJ3731-1010S E-Z Clip System by Danfoss | Female JIC 37° Flare | A/C Refrigeration Fitting | -10 Female JIC 37° Flare x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3731-1010S Danfoss
Price: 39.96 USD
Availability: InStock

$39.96 - $39.96

$39.96

$39.96 - $39.96

$39.96

Danfoss A/C & Refrigeration
E-Z Clip System - Female JIC 37° Flare - Straight

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Specifications for Variant SKU: FJ3731-1010S Danfoss
Brand:	E-Z Clip
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female JIC, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	Ref.	Clip & Cage Kit (Required)
FJ3731-0404S	7/16-20	-04	2.75"	2.08"	0.56"	FF14175
FJ3731-0606S	9/16-18	-06	3.66"	2.13"	0.68"	FF14171
FJ3731-0808S	3/4-16	-08	4.35"	2.81"	0.88"	FF14172
FJ3731-1010S	7/8-14	-10	4.21"	2.66"	1.00"	FF14173
FJ3731-1212S	1-1/16-12	-12	4.62"	3.04"	1.25"	FF14174
FJ3731-1616S	1-5/16-12	-16	5.99"	4.31"	1.50"	FF14401
