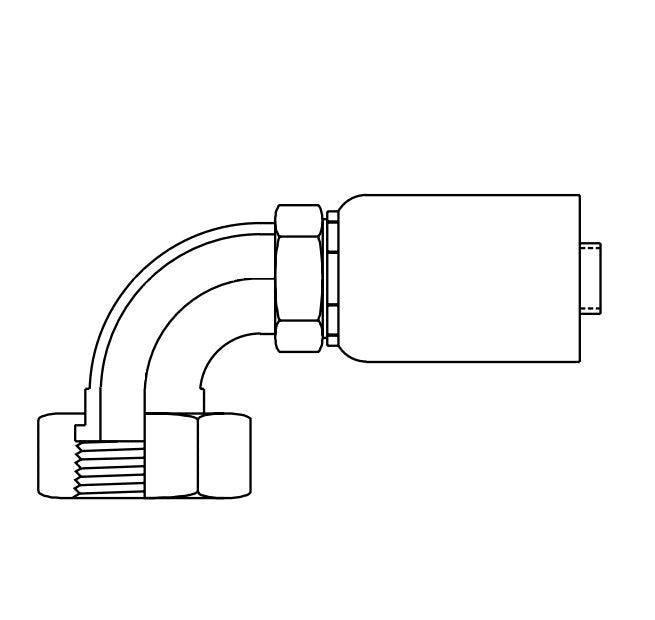

FJ9482-0606S Synflex by Danfoss | Polyon Swage Hose Fitting | Short Drop 90° Elbow | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Carbon Steel

FJ9482-0606S Synflex by Danfoss | Polyon Swage Hose Fitting | Short Drop 90° Elbow | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Carbon Steel

$36.01 - $36.01
$36.01
$36.01 - $36.01
$36.01

Synflex by Danfoss
Polyon Swage Hose Fitting - Female O-Ring Face Seal Swivel - Short Drop 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ9482-0606S Danfoss
Brand: Synflex
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Carbon Steel
Applicable Specs & Approvals: Short Drop
Compatible with the following Series: 3130 Series  |   37AL Series  |   3740 Series
Carbon Steel
Part Number 		Terminal End Thread Hose Size A Cut Off
Factor
D		 EØ H Hex 1 Hex 2
Dash Size DN Dash Size mm in mm in mm in mm in in in
FJ9482-0404S -04 9/16-18 6 -04 54,6mm 2.15" 31,8mm 1.25" 3,8mm 0.15" 20,8mm 0.82" 0.69" 0.62"
FJ9482-0606S -06 11/16-16 10 -06 68,1mm 2.68" 31,5mm 1.24" 6,1mm 0.24" 22,9mm 0.90" 0.81" 0.75"
FJ9482-0808S -08 13/16-16 12 -08 78,7mm 3.10" 37,1mm 1.46" 9,4mm 0.37" 29,2mm 1.15" 0.94" 0.88"
