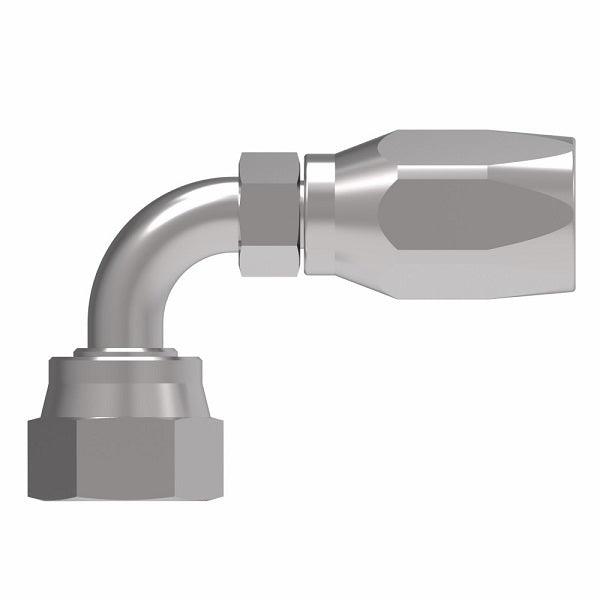

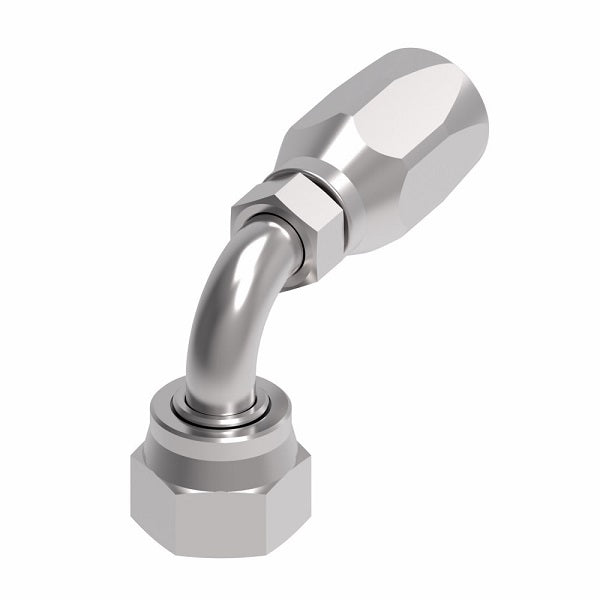

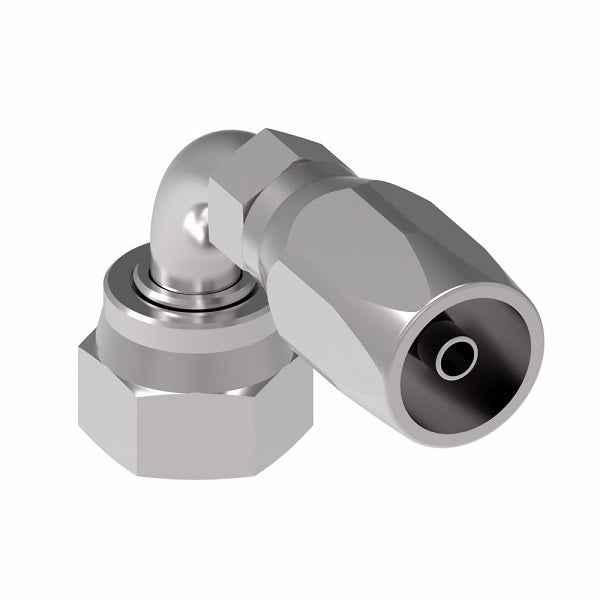

FJ9708-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ9708-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ9708-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ9708-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

FJ9708-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R5 Reusable Hose Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

$49.23 - $49.23
$49.23
$49.23 - $49.23
$49.23

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female O-Ring Face Seal (ORS) Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ9708-0808S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Reusable Hose End
Material(s): Steel
Special Properties: Short Drop, Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size "T" Thread A D EØ H
FJ9708-0404S -04 9/16-18 1.80" 1.05" 0.13" 0.82"
FJ9708-0606S -06 11/16-16 2.13" 1.23" 0.22" 0.90"
FJ9708-0808S -08 13/16-16 2.76" 1.61" 0.36" 1.15"
FJ9708-1010S -10 1-14 3.03" 1.74" 0.46" 1.27"
FJ9708-1212S -12 1-3/16-12 3.74" 2.17" 0.55" 1.88"
FJ9708-1616S -16 7/16-12 3.55" 2.28" 0.76" 2.21"
FJ9708-2020S -20 1-11/16-12 4.02" 2.65" 1.01" 2.51"
FJ9708-2424S -24 2-12 4.42" 2.97" 1.26" 2.70"
