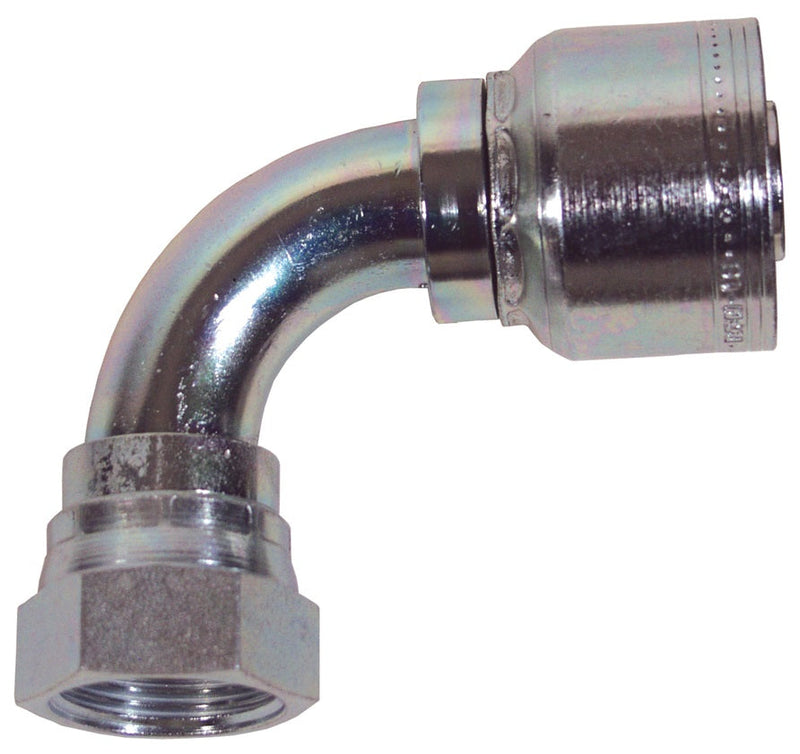

FJC90-05-05 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 90° Elbow | 5/16" Female JIC x -05 Hose Size | Carbon Steel

Save $1.50

$16.89

$16.89 - $16.89

$16.89

$15.39

$15.39 - $15.39

$15.39

Dixon Valve
PTFE Hose Fitting | Nominal Crimp Fitting | 90° Elbow | Female JIC

Crimp Collars for all Nominal fittings are included.

Quantity

Specifications for Variant SKU: FJC90-05-05 Dixon
Series:	FJC90 Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Hose Barb, 5/16in Female JIC
Material(s):	Carbon Steel
Compatible with the following Series:	WSB Series \| BSB Series

Use:
For use with nominal smooth bore PTFE hoses.

304 Stainless Steel Part Number	Carbon Steel Part Number	Hose Size	Thread Size
FJS90-03-03	FJC90-03-03	-03	3/16"
FJS90-04-04	FJC90-04-04	-04	1/4"
-	FJC90-05-05	-05	5/16"
FJS90-06-06	FJC90-06-06	-06	3/8"
FJS90-08-08	FJC90-08-08	-08	1/2"
FJS90-10-10	FJC90-10-10	-10	5/8"
FJS90-12-12	FJC90-12-12	-12	3/4"
-	FJC90-16-16	-16	1"
FJS90-20Z-20	FJC90-20Z-20	-20Z	1-1/4"
