FJX-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | Swivel | for 3/4" Hose ID

Name: FJX-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | Swivel | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: FJX-12-12-WHP Kurt
Price: 19.45 USD
Availability: InStock

Save $12.97

$32.42

$32.42 - $32.42

$32.42

$19.45

$19.45 - $19.45

$19.45

by Kurt Hydraulics
FJX-WHP - 37 deg. JIC Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX-12-12-WHP Kurt
Series:	WHP Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Female JIC
Special Properties:	Swivel

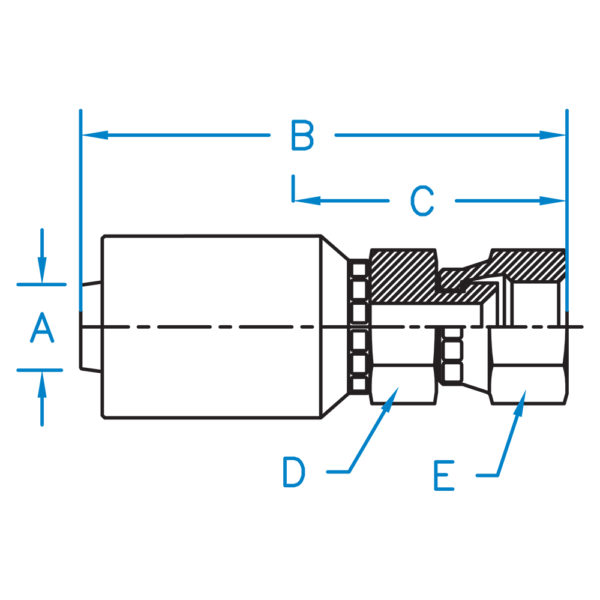

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FJX-12-12-WHP	0.750	5.380	2.170	2-1/4	2-1/4	3/4"	1-1/16-12
FJX-16-16-WHP	1.000	4.290	1.760	1-3/8	1-1/2	1.000"	1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
