FJX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | Swivel | for 1" Hose ID

Name: FJX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | Swivel | for 1" Hose ID
Brand: Kurt Hydraulics
SKU: FJX-16-16-WHP Kurt
Price: 29.23 USD
Availability: InStock

Save $19.49

$48.72

$48.72 - $48.72

$48.72

$29.23

$29.23 - $29.23

$29.23

by Kurt Hydraulics
FJX-WHP - 37 deg. JIC Female Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX-16-16-WHP Kurt
Series:	WHP Series
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 1in Female JIC
Special Properties:	Swivel

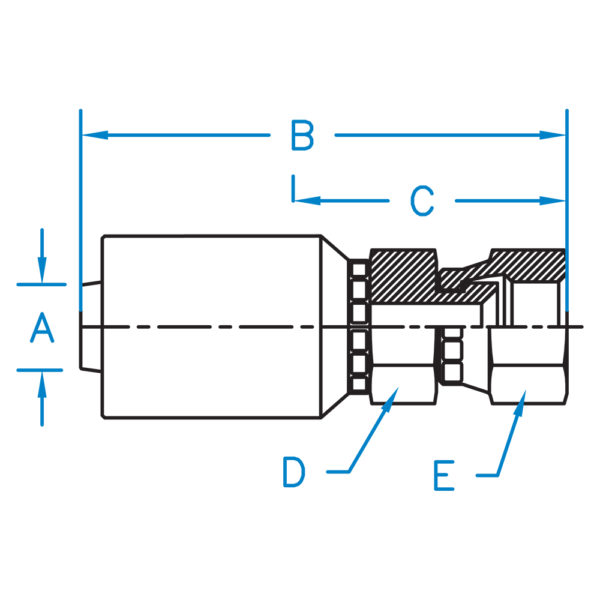

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FJX-12-12-WHP	0.750	5.380	2.170	2-1/4	2-1/4	3/4"	1-1/16-12
FJX-16-16-WHP	1.000	4.290	1.760	1-3/8	1-1/2	1.000"	1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
