FJX45-07-08-SST by Kurt Hydraulics | Jump Size | Female JIC | 45° Elbow | Swivel | PTFE Coupling | for 7/16" Hose ID

Save $8.89

$22.22

$22.22 - $22.22

$22.22

$13.33

$13.33 - $13.33

$13.33

by Kurt Hydraulics
FJX45-SST - 37 deg. JIC Female 45 deg. Bent Tube Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX45-07-08-SST Kurt
Series:	SST Series
Shape (Orientation):	45 Degree
Ends Configuration:	7/16in Hose Barb, 1/2in Female JIC
Special Properties:	Swivel, Jump Size

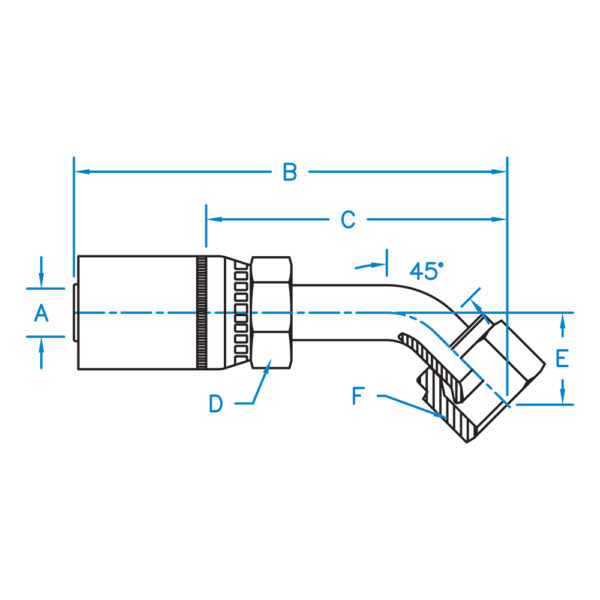

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX45-03-04-SST	0.187	1.849	1.183	9/16	0.467	9/16	3/16"	7/16-20
FJX45-04-04-SST	0.250	2.565	1.473	5/8	0.467	9/16	1/4"	7/16-20
FJX45-04-05-SST	0.250	2.565	1.473	5/8	0.467	9/16	1/4"	1/2-20
FJX45-04-06-SST	0.250	2.921	1.500	3/4	0.588	11/16	1/4"	9/16-18
FJX45-05-04-SST	0.312	3.185	1.875	5/8	0.394	9/16	5/16"	7/16-20
FJX45-05-06-SST	0.312	3.294	1.984	5/8	0.433	11/16	5/16"	9/16-18
FJX45-06-04-SST	0.375	2.565	1.473	5/8	0.467	9/16	3/8"	7/16-20
FJX45-06-06-SST	0.375	2.921	1.500	3/4	0.588	11/16	3/8"	9/16-18
FJX45-07-06-SST	0.437	3.424	1.954	3/4	0.433	11/16	7/16"	9/16-18
FJX45-07-08-SST	0.437	3.786	2.316	7/8	0.590	7/8	7/16"	3/4-16
FJX45-08-08-SST	0.500	3.284	1.625	7/8	0.713	7/8	1/2"	3/4-16
FJX45-08-10-SST	0.500	3.523	1.929	1.000	0.839	1.000	1/2"	7/8-14
FJX45-10-10-SST	0.625	3.523	1.835	1.000	0.839	1.000	5/8"	7/8-14
FJX45-10-12-SST	0.625	4.329	2.437	1-1/4	1.180	1-1/4	5/8"	1-1/16-12
FJX45-12-12-SST	0.750	4.329	2.437	1-1/4	1.180	1-1/4	3/4"	1-1/16-12
FJX45-16-16-SST	1.000	4.875	2.875	1-1/2	0.925	1-1/2	1.000"	1-5/16-12
