FJX45-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | 45° Elbow | Swivel | for 1" Hose ID

Save $37.14

$92.85

$92.85 - $92.85

$92.85

$55.71

$55.71 - $55.71

$55.71

by Kurt Hydraulics
FJX45-WHP - 37 deg. JIC Female 45 deg. Bent Tube Swivel - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX45-16-16-WHP Kurt
Series:	WHP Series
Shape (Orientation):	45 Degree
Ends Configuration:	1in Hose Barb, 1in Female JIC
Special Properties:	Swivel

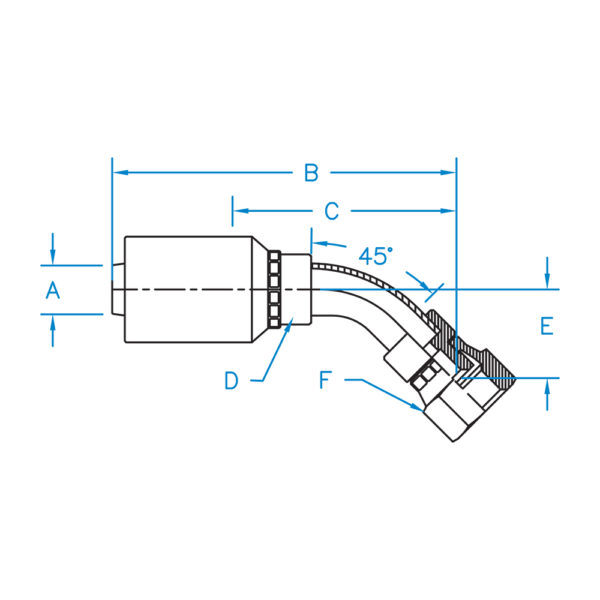

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX45-12-12-WHP	0.750	5.515	3.085	1-3/16	1.150	1-1/4	3/4"	1-1/16-12
FJX45-16-16-WHP	1.000	5.666	3.136	1-7/16	1.227	1-1/2	1.000"	1-5/16-12
