FJX45-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female JIC | 45° Elbow | Swivel | for 1-1/4" Hose ID

Save $54.90

$137.25

$137.25 - $137.25

$137.25

$82.35

$82.35 - $82.35

$82.35

by Kurt Hydraulics
FJX45-JJ - 37 deg. JIC Female 45 deg. Bent Tube Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX45-20-20-JJ Kurt
Series:	JJ Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Hose Barb, 1-1/4in Female JIC
Special Properties:	Swivel

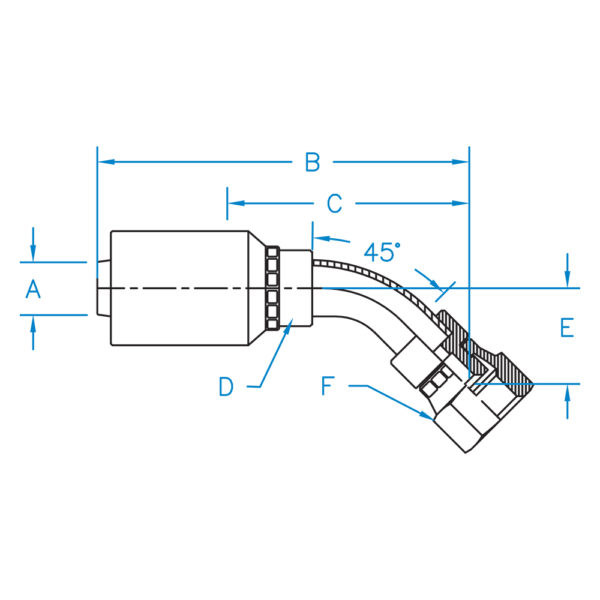

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX45-20-20-JJ	1.250	6.830	4.230	1-3/4R	1.380	2.000	1-1/4"	1-5/8 - 12
FJX45-24-24-JJ	1.500	7.06	4.41	2-1/8R	2.020	2-1/4	1-1/2"	1-7/8 - 12
FJX45-32-32-JJ	2.000	8.460	5.910	2-3/4R	2.710	2-7/8	2.000"	2-1/2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
