FJX90-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | 90° Elbow | Swivel | for 3/4" Hose ID

Save $25.61

$64.02

$64.02 - $64.02

$64.02

$38.41

$38.41 - $38.41

$38.41

by Kurt Hydraulics
FJX90-WHP - 37 deg. JIC Female 90 deg. Bent Tube Swivel - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX90-12-12-WHP Kurt
Series:	WHP Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in Female JIC
Special Properties:	Swivel

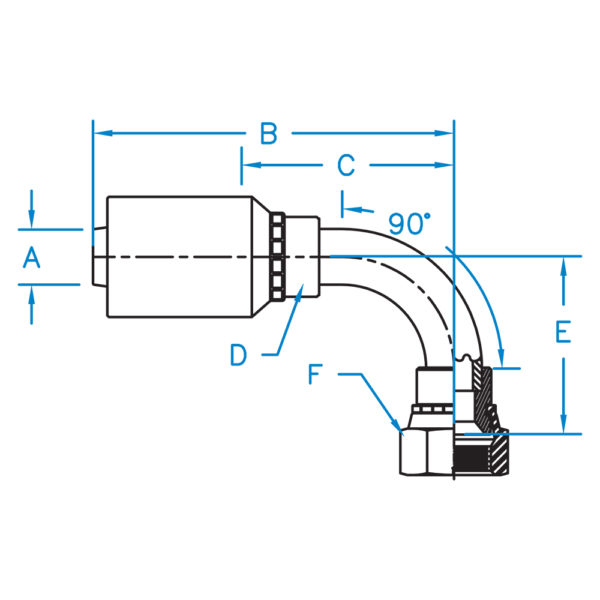

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX90-12-12-WHP	0.750	5.180	2.750	1-3/16	2.570	1-1/4	3/4"	1-1/16-12
FJX90-16-16-WHP	1.000	5.689	3.159	1-7/16	2.800	1-1/2	1.000"	1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
