FJX90B-08-08 by Kurt Hydraulics | Female JIC | 90° Elbow | Swivel | Block Style | for 1/2" Hose ID

Save $12.83

$32.07

$32.07 - $32.07

$32.07

$19.24

$19.24 - $19.24

$19.24

by Kurt Hydraulics
FJX90B - 37 deg. JIC Female 90 deg. Swivel Block Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX90B-08-08 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Hose Barb, 1/2in Female JIC
Special Properties:	Swivel

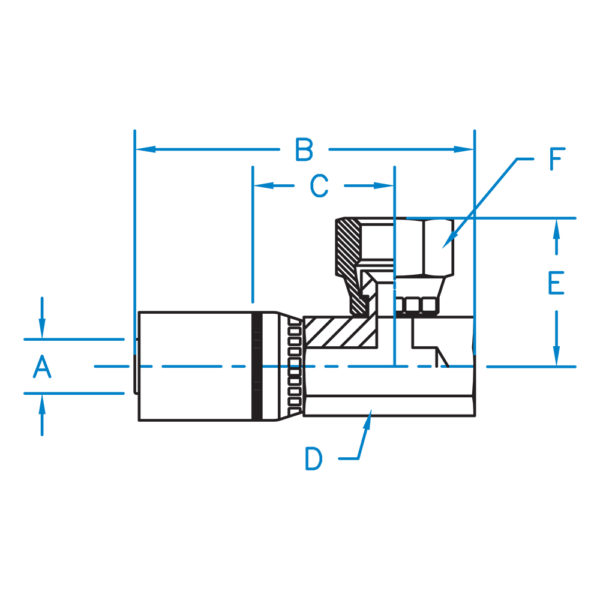

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX90B-06-06	0.375	N/A	N/A	N/A	N/A	N/A	3/8"	9/16-18
FJX90B-06-08	0.375	N/A	N/A	N/A	N/A	N/A	3/8"	3/4-16
FJX90B-08-08	0.500	N/A	N/A	N/A	N/A	N/A	1/2"	3/4-16
FJX90B-08-10	0.500	N/A	N/A	N/A	N/A	N/A	1/2"	7/8-14
FJX90B-10-10	0.625	N/A	N/A	N/A	N/A	N/A	5/8"	7/8-14
FJX90B-12-10	0.750	N/A	N/A	N/A	N/A	N/A	3/4"	7/8-14
FJX90B-12-12	0.750	N/A	N/A	N/A	N/A	N/A	3/4"	1-1/16-12
FJX90B-12-16	0.750	N/A	N/A	N/A	N/A	N/A	3/4"	1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
