FJXT-06-05 by Kurt Hydraulics | Jump Size | Female JIC | Swivel | for 3/8" Hose ID

FJXT-06-05 by Kurt Hydraulics | Jump Size | Female JIC | Swivel | for 3/8" Hose ID

Save $11.23 Save $11.23
$28.08
$28.08 - $28.08
$28.08
$16.85
$16.85 - $16.85
$16.85

by Kurt Hydraulics
FJXT - 37 deg. JIC Female Swivel Long Straight

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FJXT-06-05 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 5/16in Female JIC
Special Properties: Swivel, Jump Size

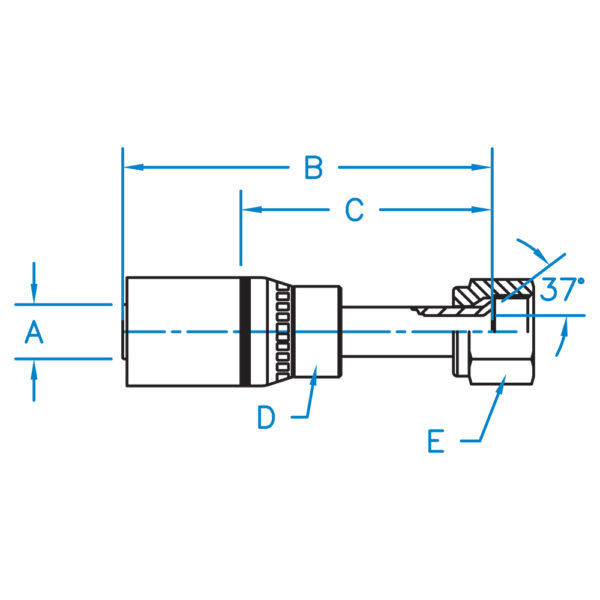

Part Number A B C D E Hose ID
(In)		 Thread
FJXT-04-04 0.250 2.975 1.72 5/8 9/16 1/4" 7/16-20
FJXT-04-05 0.250 2.975 1.72 5/8 5/8 1/4" 1/2-20
FJXT-06-05 0.375 3.2 1.7 11/16R 5/8 3/8" 1/2-20
FJXT-06-06 0.375 3.756 2.25 11/16R 11/16 3/8" 9/16-18
FJXT-06-08 0.375 3.89 2.39 3/4R 7/8 3/8" 3/4-16
FJXT-08-08 0.500 3.963 2.463 7/8 7/8 1/2" 3/4-16
FJXT-08-10 0.500 4.22 2.75 7/8 1.00 1/2" 7/8-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
