FJXT-08-08 by Kurt Hydraulics | Female JIC | Swivel | for 1/2" Hose ID

Name: FJXT-08-08 by Kurt Hydraulics | Female JIC | Swivel | for 1/2" Hose ID
Brand: Kurt Hydraulics
SKU: FJXT-08-08 Kurt
Price: 11.68 USD
Availability: InStock

Save $7.79

$19.47

$19.47 - $19.47

$19.47

$11.68

$11.68 - $11.68

$11.68

by Kurt Hydraulics
FJXT - 37 deg. JIC Female Swivel Long Straight

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJXT-08-08 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 1/2in Female JIC
Special Properties:	Swivel

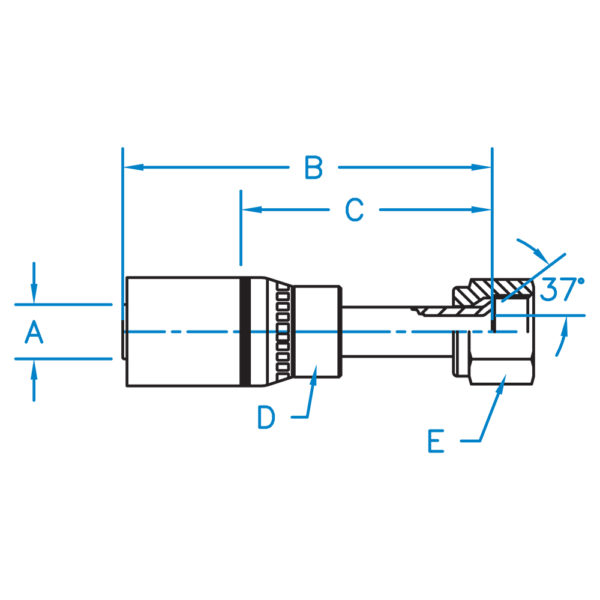

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FJXT-04-04	0.250	2.975	1.72	5/8	9/16	1/4"	7/16-20
FJXT-04-05	0.250	2.975	1.72	5/8	5/8	1/4"	1/2-20
FJXT-06-05	0.375	3.2	1.7	11/16R	5/8	3/8"	1/2-20
FJXT-06-06	0.375	3.756	2.25	11/16R	11/16	3/8"	9/16-18
FJXT-06-08	0.375	3.89	2.39	3/4R	7/8	3/8"	3/4-16
FJXT-08-08	0.500	3.963	2.463	7/8	7/8	1/2"	3/4-16
FJXT-08-10	0.500	4.22	2.75	7/8	1.00	1/2"	7/8-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
