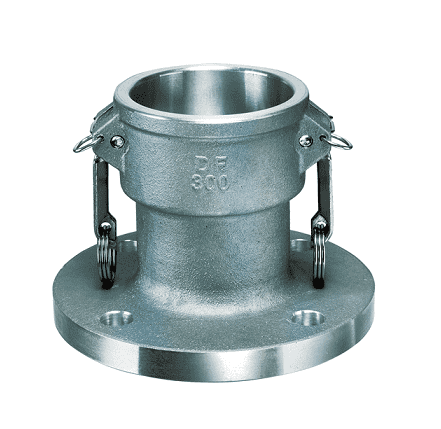

FL-AL-D300 by Kuriyama | Quick-Acting Special Application Coupling | Part D | 3" Coupler x 150# ASA Flange | Aluminum

FL-AL-D300 by Kuriyama | Quick-Acting Special Application Coupling | Part D | 3" Coupler x 150# ASA Flange | Aluminum

Save $22.20 Save $22.20
$116.77
$116.77 - $116.77
$116.77
$94.57
$94.57 - $94.57
$94.57

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part D - Coupler x 150# ASA Flange - Aluminum

Specifications for Variant SKU: FL-AL-D300 Kuriyama
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 3in 150# Flange
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses.
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Coupler 150# ASA Flange Weight (Lbs.)
FL-AL-D200 2" 2" 2.28 lbs
FL-AL-D300 3" 3" 5.07 lbs
FL-AL-D400 4" 4" 7.94 lbs
FL-AL-D600 6" 6" 12.89 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
