3-CWC-W-25 Flexaust CWC-W (CWCW) 3 inch Dust and Material Handling Hose - 25ft
3-CWC-W-25 Flexaust CWC-W (CWCW) 3 inch Dust and Material Handling Hose - 25ft
3-CWC-W-25 Flexaust CWC-W (CWCW) 3 inch Dust and Material Handling Hose - 25ft
3-CWC-W-25 Flexaust CWC-W (CWCW) 3 inch Dust and Material Handling Hose - 25ft

3-CWC-W-25 by Flexaust | #1110300025 | CWC-W Series | Dust and Material Handling Hose | 3 inch | 25ft

Save $31.04 Save $31.04
$310.37
$310.37 - $310.37
$310.37
$279.33
$279.33 - $279.33
$279.33

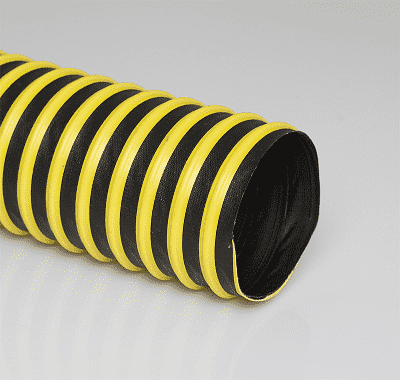

Flexaust CWC-W (CWCW) Dust and Material Handling Duct Hose Double-ply black neoprene coated polyester fabric hose reinforced with a spring steel wire helix & yellow external PVC coated polyester wearstrip.

Package Quantity: 25 FT

Specifications for Variant SKU: 3-CWC-W-25 Flexaust | 25 |
Brand: Flexaust
Series: CWC-W
Hose Color(s): Black & Yellow
Internal Diameter: 3in
Tubing Construction: Neoprene Coated Polyester
Special Properties: Outer Helix Protection

SPECIFICATIONS

Applications: Air Duct Cleaning, Bridge Cleaning Filtering, Flame Retardant, Furnace Duct Cleaning, Sand Blasting, Tractor Pull Exhaust SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply black neoprene coated polyester fabric
Reinforcement: spring steel wire helix & yello external PVC coated polyester wearstrip Cover: N/A
Temperature Range: -40 deg. F to 250 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Wearstrip offers additional external abrasion & drag resistance
  • Good crush resistance & tensile strength.
  • Neoprene coating offers excellent abrasion & chemical resistance.
  • Listed as UL 94V-0 flame retardant.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
CWC-W 3in 3" N/A N/A N/A N/A N/A N/A
CWC-W 4in 4" N/A N/A N/A N/A N/A N/A
CWC-W 4.5in 4.5" N/A N/A N/A N/A N/A N/A
CWC-W 5in 5" N/A 3.6" 4:1 12 20 14 lbs
CWC-W 6in 6" N/A 3.9" 4:1 17 15 21.5 lbs
CWC-W 7in 7" N/A N/A N/A N/A N/A N/A
CWC-W 8in 8" N/A 7.5" 4:1 7.3 11 32.75 lbs
CWC-W 9in 9" N/A N/A N/A N/A N/A N/A
CWC-W 10in 10" N/A 8.4" 4:1 4 9 44.75 lbs
CWC-W 12in 12" N/A 9.8" 4:1 4.9 7 6.5 lbs
CWC-W 14in 14" N/A 11.5" 4:1 3.1 6 72.5 lbs
CWC-W 16in 16" N/A 13" 4:1 2.1 5 82.5 lbs
CWC-W 18in 18" N/A 14.5" 4:1 1.5 4 92.5 lbs
CWC-W 20in 20" N/A 16.3" 4:1 1.1 3 102.5 lbs
CWC-W 22in 22" N/A N/A N/A N/A N/A N/A
CWC-W 24in 24" N/A 20" 4:1 .6 2 122.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
