20-FSP-Bridge-25 Flexaust FSP Bridge 20 inch Dust and Material Handling Duct Hose - 25ft
20-FSP-Bridge-25 Flexaust FSP Bridge 20 inch Dust and Material Handling Duct Hose - 25ft
20-FSP-Bridge-25 Flexaust FSP Bridge 20 inch Dust and Material Handling Duct Hose - 25ft
20-FSP-Bridge-25 Flexaust FSP Bridge 20 inch Dust and Material Handling Duct Hose - 25ft

20-FSP-Bridge-25 by Flexaust | #2502000025 | FSP Bridge | Dust and Material Handling Duct Hose | 20 inch | 25ft

Save $93.44 Save $93.44
$934.44
$934.44 - $934.44
$934.44
$841.00
$841.00 - $841.00
$841.00

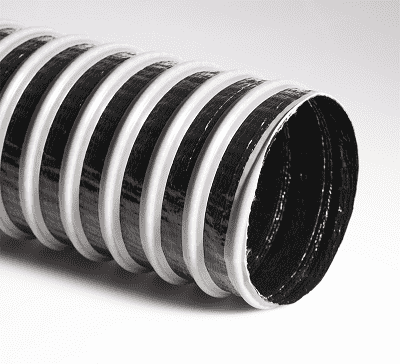

Flexaust FSP Bridge Dust and Material Handling Duct Hose Double-ply black PVC vinyl coated polyester fabric hose reinforced with a spring steel wire helix & gray external PVC wearstrip

Package Quantity: 25 FT

Specifications for Variant SKU: 20-FSP-Bridge-25 Flexaust | 25 |
Brand: Flexaust
Series: FSP Bridge
Hose Color(s): Black & White/Off-White
Internal Diameter: 20in
Tubing Construction: PVC Coated Polyester
Special Properties: Outer Helix Protection

SPECIFICATIONS

Applications: Agricultural, Bridge Cleaning Filtering, Concrete Transport, Paper Mills, Street & Parking Lot Sweepers SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply black PVC vinyl coated polyester fabric
Reinforcement: Spring steel wire helix & gray external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 180 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Wearstrip offers additional external abrasion & drag resistance.
  • Great moisture, mildew, & chemical resistance.
  • Low friction loss.
  • Manufactured with flame retardant materials.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
FSP Bridge 12in 12" N/A" 11" 4:1 8 2 55 lbs
FSP Bridge 14in 14" N/A 12" 4:1 3 4 67.5 lbs
FSP Bridge 16in 16" N/A 14" 4:1 5 2 75 lbs
FSP Bridge 18in 18" N/A 16" 4:1 2 3 92.5 lbs
FSP Bridge 20in 20" N/A 17" 4:1 1 2 95 lbs
FSP Bridge 22in 22" N/A 19" 4:1 1 2 105 lbs
FSP Bridge 24in 24" N/A 21" 4:1 .6 1.8 112.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
