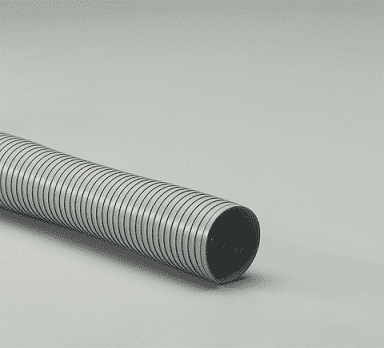

6-Pliaduct-25 Flexaust Pliaduct 6 inch Air and Fume Duct Hose - 25ft

6-Pliaduct-25 by Flexaust | #7907-600025 | Pliaduct | Air and Fume Duct Hose | 6 inch | 25ft

Save $72.41

$724.08

$724.08 - $724.08

$724.08

$651.67

$651.67 - $651.67

$651.67

Flexaust Dayflex Pliaduct Air and Fume Duct Hose 100% rigid self-supporting gray PVC material with a ribbon-lock construction

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 6-Pliaduct-25 Flexaust \| 25 \|
Brand:	Dayflex
Series:	Pliaduct
Hose Color(s):	Grey
Internal Diameter:	6in
Tubing Construction:	PVC

SPECIFICATIONS

Other Features:
Applications:	Pollution Control	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Gray PVC
Reinforcement:	100% rigid self-supporting	Cover:	N/A
Temperature Range:	-10 deg. F to 150 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Diameter is adjustable by hand & can be reduced or expanded by approximately 25% of original I.D. Chemical resistant. May be shaped & reshaped & spliced together without special tools. Excellent for either temporary or permanent installation. Manufactured with flame retardant materials.

Part Number 10 ft Reels	Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 10ft (Lbs/Ft)	Weight - 25ft (Lbs/Ft)
-	Pliaduct 2in	2"	N/A	5.2"	N/A	6.617	2.5	N/A	7.5 lbs
-	Pliaduct 2.5in	2.5"	N/A	6.3"	N/A	6.617	2.5	N/A	10 lbs
-	Pliaduct 3in	3"	N/A	7.5"	N/A	6.617	2.5	N/A	12.5 lbs
-	Pliaduct 3.5in	3.5"	N/A	8.3"	N/A	6.617	2.5	N/A	12.75 lbs
-	Pliaduct 4in	4"	N/A	9"	N/A	6.617	2.5	N/A	17.5 lbs
-	Pliaduct 4.5in	4.5"	N/A	9.8"	N/A	6.617	2.5	N/A	20 lbs
-	Pliaduct 5in	5"	N/A	11"	N/A	5.882	2.5	N/A	22.5 lbs
-	Pliaduct 6in	6"	N/A	12.5"	N/A	4.411	2.5	N/A	27.5 lbs
Pliaduct 8in	-	8"	N/A	17"	N/A	3.676	2	15.2 lbs	N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
