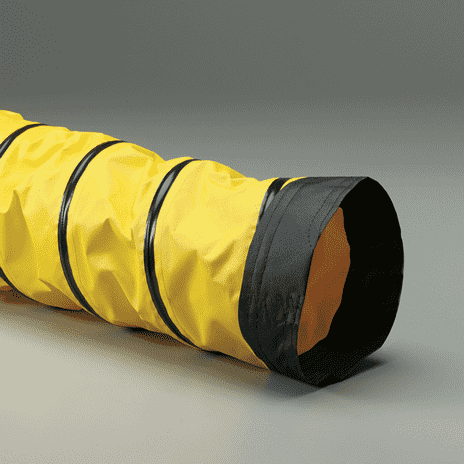

16-SD-W-25 Flexaust SD-W (SDW) 16 inch Air Duct Hose - 25ft
16-SD-W-25 Flexaust SD-W (SDW) 16 inch Air Duct Hose - 25ft
16-SD-W-25 Flexaust SD-W (SDW) 16 inch Air Duct Hose - 25ft
16-SD-W-25 Flexaust SD-W (SDW) 16 inch Air Duct Hose - 25ft

16-SD-W-25 by Flexaust | #3421600025 | SD-W Series | Air Duct Hose | 16 inch | 25ft

Save $62.67 Save $62.67
$626.67
$626.67 - $626.67
$626.67
$564.00
$564.00 - $564.00
$564.00

Flexaust Springflex SD-W (SDW) Air Duct Hose

Single-ply yellow neoprene coated polyester fabric hose reinforced with a spring steel wire helix & black external PVC wearstrip.

Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.

Package Quantity: 25 FT

Specifications for Variant SKU: 16-SD-W-25 Flexaust | 25 |
Brand: Springflex
Series: SD-W
Hose Color(s): Black & Yellow
Internal Diameter: 16in
Tubing Construction: Neoprene Coated Polyester
Springflex End Finishes Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.
Sewn Cuff Standard/Enclosed
Belted Cuff		 Funnel Cuff Belt Loop & Pull Tabs Wire Rope/Nylon Ring Sto-Sack

SPECIFICATIONS

Applications: Aircraft, Chiller, Confined Space Ventilation, Dehumidification, Dog Agility, Fans & Blowers, Flame Retardant, Function Tent HVAC, Humidity Control, Laser Engraving, Mining, Smoke Ejectors, Utility Blowers, Ventilation SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply yellow neoprene coated polyester fabric
Reinforcement: Spring steel wire helix & black external PVC wearstrip Cover: N/A
Temperature Range: -65 deg. F to 250 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ideal for moving large volumes of air in portable or permanent ventilation/exhaust systems.
  • Wearstrip offers additional external abrasion & drag resistance.
  • Great compressibility.
  • Retractability allows for convenient storage & easy transport in a fraction of its fully extended length.
  • Listed as UL 94V-0 flame retardant.
  • Shown with optional cuff.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
SD-W 4in 4" N/A 3" 5:1 N/A 5.4 6.25 lbs
SD-W 5in 5" N/A N/A N/A N/A N/A N/A
SD-W 6in 6" N/A 3.5" 12:1 N/A 3 7.5 lbs
SD-W 8in 8" N/A 5" 12:1 N/A 3 10 lbs
SD-W 10in 10" N/A 6.5" 12:1 N/A 2.5 15 lbs
SD-W 12in 12" N/A 7.5" 12:1 N/A 2 17.5 lbs
SD-W 14in 14" N/A 8.5" 12:1 N/A 1.7 20 lbs
SD-W 16in 16" N/A 9.5" 12:1 N/A 1.5 22.5 lbs
SD-W 18in 18" N/A 10.5" 12:1 N/A 1.3 25 lbs
SD-W 20in 20" N/A 12" 12:1 N/A 1.1 27.5 lbs
SD-W 22in 22" N/A N/A N/A N/A N/A N/A
SD-W 24in 24" N/A 13" 12:1 N/A 1 40 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
