16-T-7-25 Flexaust T-7 (T7) 16 inch Dust and Material Handling Duct Hose - 25ft
16-T-7-25 Flexaust T-7 (T7) 16 inch Dust and Material Handling Duct Hose - 25ft
16-T-7-25 Flexaust T-7 (T7) 16 inch Dust and Material Handling Duct Hose - 25ft
16-T-7-25 Flexaust T-7 (T7) 16 inch Dust and Material Handling Duct Hose - 25ft

16-T-7-25 by Flexaust | #8731160025 | T-7 Series | Dust and Material Handling Duct Hose | 16 inch | 25ft

Save $63.56 Save $63.56
$635.56
$635.56 - $635.56
$635.56
$572.00
$572.00 - $572.00
$572.00

Flexaust
Flexadux T-7 (T7) Dust and Material Handling Duct Hose

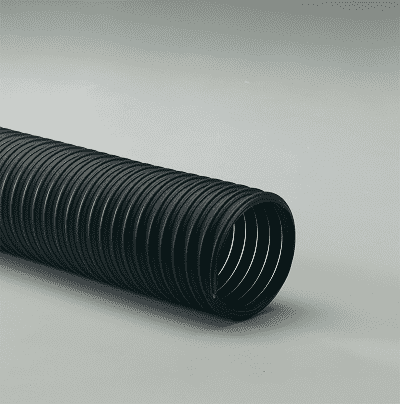

Medium weight black thermoplastic rubber hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 16-T-7-25 Flexaust | 25 |
Brand: Flexadux TR
Series: T-7
Hose Color(s): Black
Internal Diameter: 16in
Tubing Construction: Thermoplastic Rubber

SPECIFICATIONS

Applications: Chemical Plants, Dust Collection, Landfill Venting, Off-Road, Paint Spray Extraction, Pipe Organs, Plastic Bag Machines, Pollution Control, R.V. Manufacturing, Sheet Metal SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight black thermoplastic rubber
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -60 deg. F to 275 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Good abrasion resistance.
  • Designed for applications with wide temperature ranges.
  • Great moisture & UV resistance.
  • Excellent chemical resistance.
  • Smooth interior assures minimal friction loss & efficient air flow.
Part Number
25 ft Reels		 Part Number
50 ft Reels		 Inside
Diameter		 Wall Thickness
(In)		 Centerline
Bend Radius (In)		 Compression
Ratio		 Negative Pressure
(In/Hg)		 Working Pressure
(PSI)		 Weight - 25ft
(Lbs/Ft)		 Weight - 50ft
(Lbs/Ft)
T-7 1.5in T-7 1.5in 1.5" .025" 1.7" 2:1 29 25 4 lbs 8 lbs
T-7 1.75in T-7 1.75in 1.75" .025" 1.8" 2:1 29 21 4.75 lbs 9.5 lbs
T-7 2in T-7 2in 2" .025" 2" 2:1 29 19 6.25 lbs 12.5 lbs
T-7 2.25in T-7 2.25in 2.25" .025" 2.2" 2:1 29 17 7 lbs 14 lbs
T-7 2.5in T-7 2.5in 2.5" .030" 2.5" 2:1 29 14 8 lbs 16 lbs
T-7 3in T-7 3in 3" .030" 3" 2:1 29 11 10 lbs 20 lbs
T-7 3.5in T-7 3.5in 3.5" .030" 4" 2:1 29 10 11.25 lbs 22.5 lbs
T-7 4in T-7 4in 4" .030" 5.5" 2:1 29 9 16.75 lbs 33.5 lbs
T-7 4.5in T-7 4.5in 4.5" .030" 6" 2:1 22 8 18.75 lbs 37.5 lbs
T-7 5in T-7 5in 5" .030" 6.5" 2:1 17 8 21.25 lbs 42.5 lbs
T-7 5.5in T-7 5.5in 5.5" .030" 6.8" 2:1 12.5 7 22.5 lbs 45 lbs
T-7 6in T-7 6in 6" .030" 6" 3:1 11 7 20.5 lbs 41 lbs
T-7 7in T-7 7in 7" .030" 7" 3:1 9 5 23.75 lbs 47.5 lbs
T-7 8in T-7 8in 8" .030" 8" 3:1 5.5 4.5 30 lbs 60 lbs
T-7 9in T-7 9in 9" .030" 9" 3:1 10 4 42.5 lbs 85 lbs
T-7 10in T-7 10in 10" .030" 10" 3:1 6.5 4 55 lbs 110 lbs
T-7 12in T-7 12in 12" .030" 12" 3:1 5 3.8 67.5 lbs 135 lbs
T-7 14in T-7 14in 14" .030" 14" 3:1 3 3.2 75 lbs 150 lbs
T-7 16in T-7 16in 16" .030" 16" 3:1 2.3 2.6 87.5 lbs 175 lbs
T-7 18in T-7 18in 18" .030" 18" 3:1 2 2.3 97.5 lbs 195 lbs
T-7 20in T-7 20in 20" .030" 21" 3:1 1.5 2 107.5 lbs 215 lbs
T-7 22in T-7 22in 22" .030" 23" 3:1 1 1.9 110 lbs 220 lbs
T-7 24in T-7 24in 24" .030" 25" 3:1 .8 1.75 120 lbs 240 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
