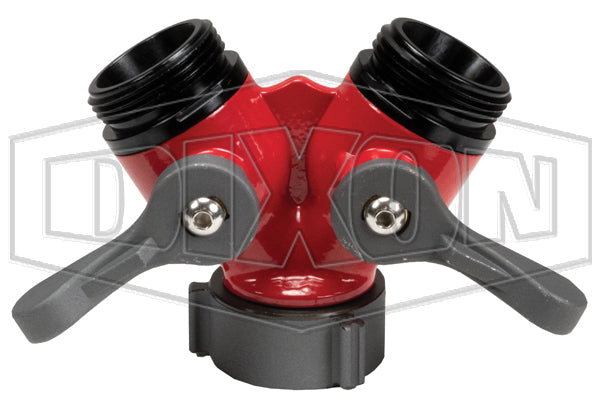

FMBV15F15F Dixon Aluminum 2-Way Ball Valve - 1-1/2" Female NST(NH) Swivel Inlet x Two 1-1/2" Male NST(NH) Outlets

FMBV15F15F Dixon Aluminum 2-Way Ball Valve - 1-1/2" Female NST(NH) Swivel Inlet x Two 1-1/2" Male NST(NH) Outlets

Save $62.50 Save $62.50
$409.95
$409.95 - $409.95
$409.95
$347.45
$347.45 - $347.45
$347.45

Dixon Fire Fittings
2-Way Ball Valves

This valve will feed two smaller attack lines from one large diameter supply line. The 2-1/2" outlet is a gated ball valve resulting in a safe controlled flow of water.

Can be used to distribute water in the opposite direction.
Specifications for Variant SKU: FMBV15F15F Dixon
Shape (Orientation): Y
Ends Configuration: 1-1/2in Female NST, 1-1/2in Male NST, 1-1/2in Male NST, Some Ends Match
Material(s): Aluminum
Features:
  • High strength aluminum alloy, 356-T6
  • Finish hardcoat anodized- minimum thickness 0.001"
  • Comes complete with a carrying handle.
  • Working Pressure: 280 PSI
Part Number Inlet (Two) Outlets Weight
FMBV15F15F 1-1/2" Female NST(NH) Swivel 1-1/2" Male NST(NH) Swivel -
FMBV15S15S 1-1/2" Female NPSH Swivel 1-1/2" Male NPSH Swivel 2.3930
FMBV25F15F 2-1/2" Female NST(NH) Swivel 1-1/2" Male NST(NH) Swivel 5.5000
FMBV25F25F 2-1/2" Female NST(NH) Swivel 2-1/2" Male NST(NH) Swivel 14.2000
FMBV40F25F 4" Female NST(NH) Swivel 2-1/2" Male NST(NH) Swivel 17.3930
FMBV45F25F 4-1/2" Female NST(NH) Swivel 2-1/2" Male NST(NH) Swivel -
