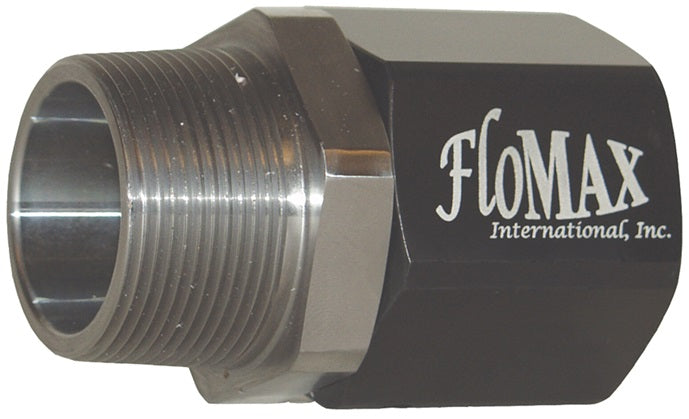

FNS by Dixon Valve | FloMAX Diesel Fuel Swivel | 1-1/2" Male NPT x 1-1/2" Female NPT | Standard

FNS by Dixon Valve | FloMAX Diesel Fuel Swivel | 1-1/2" Male NPT x 1-1/2" Female NPT | Standard

Save $27.66 Save $27.66
$248.91
$248.91 - $248.91
$248.91
$221.25
$221.25 - $221.25
$221.25

Dixon Valve
FloMAX Diesel Fuel Swivel
Specifications for Variant SKU: FNS Dixon
Brand: FloMAX
Series: FNS Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Male NPT
Material(s): Anodized Aluminum, Stainless Steel
Seal Material(s): Fluorosilicone
Special Properties: Swivel
Construction:
  • Stainless steel male threaded base.
  • Stainless steel ball bearings.
  • Black anodized female threaded nut.
  • Fluorosilicone sealing O-rings.
Part Number Description Thread Size Cross Over Part Numbers
Wiggins FastFill
FNS Standard 1-1/2" Male NPT x 1-1/2" Female NPT ZS9 S150
FNS2 Standard 2" Male NPT x 1-1/2" Female NPT - -
FNSID Double 1-1/2" Female NPT x 1-1/2" Female NPT - -
FN600S* Standard 1-1/2" Male NPS x 1-1/2" Female NPT - -

* Used with FN600 or FN600BL
