FP-06-04-W by Kurt Hydraulics | Jump Size | Female NPSM | Rigid | for 3/8" Hose ID

Name: FP-06-04-W by Kurt Hydraulics | Jump Size | Female NPSM | Rigid | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: FP-06-04-W Kurt
Price: 10.08 USD
Availability: InStock

Save $1.26

$11.34

$11.34 - $11.34

$11.34

$10.08

$10.08 - $10.08

$10.08

by Kurt Hydraulics
FP-W - NPSM Female Pipe Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: FP-06-04-W Kurt
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 1/4in Female NPSM
Special Properties:	Jump Size, Rigid

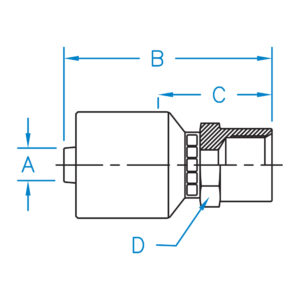

Part Number	A	B	C	D	Hose ID (In)	Thread
FP-06-04-W	0.375	2.488	1.118	11/16	3/8"	1/4-18
FP-06-06-W	0.375	2.343	1.114	7/8	3/8"	3/8-18
FP-06-08-W	0.375	2.644	1.274	1.000	3/8"	1/2-14
FP-08-08-W	0.500	2.669	1.329	1.000	1/2"	1/2-14
FP-12-12-W	0.750	3.329	1.450	1-1/4	3/4"	3/4-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
