FPX-06-08 by Kurt Hydraulics | Jump Size | Female NPSM | Swivel | for 3/8" Hose ID

Name: FPX-06-08 by Kurt Hydraulics | Jump Size | Female NPSM | Swivel | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: FPX-06-08 Kurt
Price: 10.21 USD
Availability: InStock

Save $6.81

$17.02

$17.02 - $17.02

$17.02

$10.21

$10.21 - $10.21

$10.21

by Kurt Hydraulics
FPX - Female Pipe NPSM Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FPX-06-08 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 1/2in Female NPSM
Special Properties:	Swivel, Jump Size

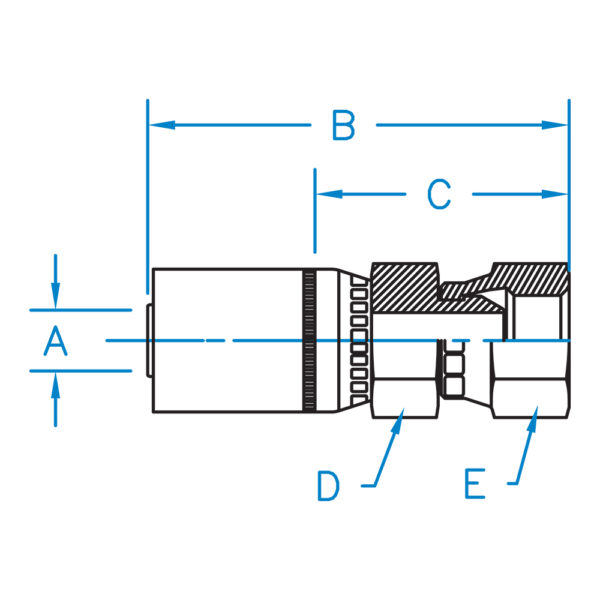

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FPX-03-04	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FPX-04-02	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FPX-04-04	0.250	2.149	1.089	9/16	3/4	1/4"	1/4-18
FPX-06-06	0.375	2.344	1.089	11/16	3/4	3/8"	3/8-18
FPX-06-08	0.375	2.849	1.349	7/8	1.00	3/8"	3/4-14
FPX-08-08	0.500	2.699	1.432	11/16	7/8	1/2"	1/2-14
FPX-08-12	0.500	N/A	N/A	N/A	N/A	3/4"	3/4-14
FPX-12-12	0.750	2.927	1.699	1.000	1.000	3/4"	3/4-14
FPX-16-16	1.000	3.292	1.780	1-1/8	1-1/4	1"	1-11-1/2
FPX-20-20	1.250	4.018	2.018	1-3/4	2.000	1-1/4"	1-1/4 - 11-1/2

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
