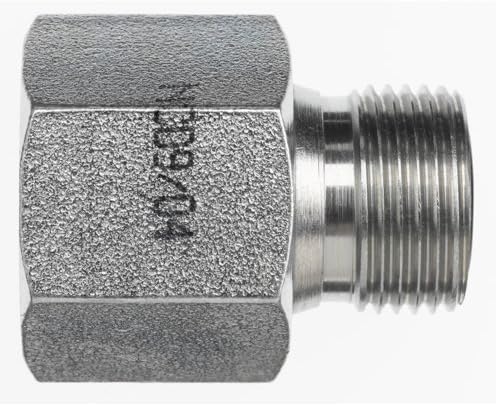

FS2406-10-06 by Brennan Inc. | -10 Female Face Seal x -06 Male Face Seal | Straight | Tube End Reducer | Steel

FS2406-10-06 by Brennan Inc. | -10 Female Face Seal x -06 Male Face Seal | Straight | Tube End Reducer | Steel

$9.37 - $9.37
$9.37
$11.89
$11.89 - $11.89
$11.89

Brennan Inc.
O-Ring Face Seal Fittings: FS2406 - Female Face Seal x Male Face Seal Straight Tube End Reducer
Specifications for Variant SKU: FS2406-10-06 Brennan
Shape (Orientation): Straight
Ends Configuration: 5/8in Female O-Ring Face Seal, 3/8in Male O-Ring Face Seal, Some Ends Match
Material(s): Steel
Part Number Material A1TubeO.D. A2TubeO.D. A1Thread A2Thread A2Drill LLength CHex
FS2406-04-06 Steel - - - - - - -
FS2406-06-04 Steel 3/8" 1/4" 11/16-16" 9/16-18" 0.172" 0.770" 0.812"
FS2406-06-06 Steel - - - - - - -
FS2406-08-04 Steel 3/8" 1/4" 13/16-16" 9/16-18" 0.172" 0.860" 0.938"
FS2406-08-06 Steel 1/2" 3/8" 13/16-16" 11/16-16" 0.264" 0.880" 0.938"
FS2406-08-12 Steel - - - - - - -
FS2406-10-04 Steel 5/8" 1/4" 1-14" 9/16-18" 0.172" 0.900" 1.125"
FS2406-10-06 Steel 5/8" 3/8" 1-14" 11/16-16" 0.264" 0.950" 1.125"
FS2406-10-08 Steel 5/8" 1/2" 1-14" 13/16-16" 0.378" 1.010" 1.125"
FS2406-10-12 Steel 5/8" 3/4" 1-14" 1-3/16-12" 0.453" 1.063" 1.125"
FS2406-12-04 Steel 3/4" 1/4" 1-3/16-12" 9/16-18" 0.172" 0.980" 1.375"
FS2406-12-06 Steel 3/4" 3/8" 1-3/16-12" 11/16-16" 0.264" 1.030" 1.375"
FS2406-12-08 Steel 3/4" 1/2" 1-3/16-12" 13/16-16" 0.378" 1.090" 1.375"
FS2406-12-10 Steel 3/4" 5/8" 1-3/16-12" 1-14" 0.484" 1.160" 1.375"
FS2406-12-16 Steel 3/4" 1" 1-3/16-12" 1-7/16-12" 0.609" 1.240" 1.375"
FS2406-16-06 Steel 1" 3/8" 1-7/16-12" 11/16-16" 0.264" 1.09" 1-5/8"
FS2406-16-08 Steel 1" 1/2" 1-7/16-12" 13/16-16" 0.378" 1.150" 1.625"
FS2406-16-10 Steel 1" 5/8" 1-7/16-12" 1-14" 0.484" 1.260" 1.625"
FS2406-16-12 Steel 1" 3/4" 1-7/16-12" 1-3/16-12" 0.609" 1.300" 1.625"
FS2406-16-20 Steel 1" 1-1/4" 1-7/16-12" 1-11/16-12" 0.783" 1.330" 1.625"
FS2406-20-08 Steel - - - - - - -
FS2406-20-12 Steel 1-1/4" 3/4" 1-11/16-12" 1-3/16-12" 0.609" 1.320" 1.875"
FS2406-20-16 Steel 1-1/4" 1" 1-11/16-12" 1-7/16-12" 0.811" 1.514" 1.875"
FS2406-20-24 Steel 1-1/4" 1-1/2" 1-11/16-12" 2-12" 1.260" 1.514" 1.875"
FS2406-24-12 Steel 1-1/2" 3/4" 2-12" 1-3/16-12" 0.609" 1.320" 2-1/4"
FS2406-24-16 Steel 1-1/2" 1" 2-12" 1-7/16-12" 0.811" 1.340" 2.250"
FS2406-24-20 Steel 1-1/2" 1-1/4" 2-12" 1-11/16-12" 1.024" 1.340" 2.250"

FS2406-16-12-SS Stainless Steel 1" 3/4" 1-7/16-12" 1-3/16-12" 0.609" 1.300" 1.625"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
