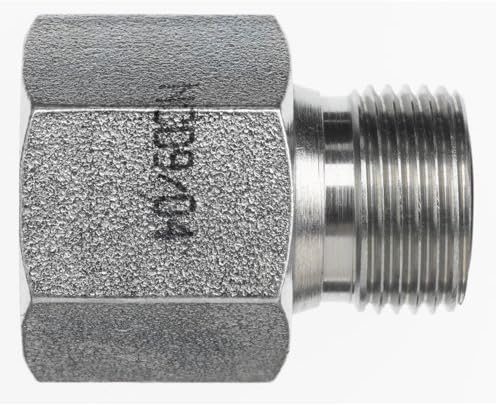

FS2406-20-24 by Brennan Inc. | -20 Female Face Seal x -24 Male Face Seal | Straight | Tube End Reducer | Steel

FS2406-20-24 by Brennan Inc. | -20 Female Face Seal x -24 Male Face Seal | Straight | Tube End Reducer | Steel

$27.01 - $27.01
$27.01
$34.28
$34.28 - $34.28
$34.28

Brennan Inc.
O-Ring Face Seal Fittings: FS2406 - Female Face Seal x Male Face Seal Straight Tube End Reducer
Specifications for Variant SKU: FS2406-20-24 Brennan
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female O-Ring Face Seal, 1-1/2in Male O-Ring Face Seal, Some Ends Match
Material(s): Steel
Part Number Material A1TubeO.D. A2TubeO.D. A1Thread A2Thread A2Drill LLength CHex
FS2406-04-06 Steel - - - - - - -
FS2406-06-04 Steel 3/8" 1/4" 11/16-16" 9/16-18" 0.172" 0.770" 0.812"
FS2406-06-06 Steel - - - - - - -
FS2406-08-04 Steel 3/8" 1/4" 13/16-16" 9/16-18" 0.172" 0.860" 0.938"
FS2406-08-06 Steel 1/2" 3/8" 13/16-16" 11/16-16" 0.264" 0.880" 0.938"
FS2406-08-12 Steel - - - - - - -
FS2406-10-04 Steel 5/8" 1/4" 1-14" 9/16-18" 0.172" 0.900" 1.125"
FS2406-10-06 Steel 5/8" 3/8" 1-14" 11/16-16" 0.264" 0.950" 1.125"
FS2406-10-08 Steel 5/8" 1/2" 1-14" 13/16-16" 0.378" 1.010" 1.125"
FS2406-10-12 Steel 5/8" 3/4" 1-14" 1-3/16-12" 0.453" 1.063" 1.125"
FS2406-12-04 Steel 3/4" 1/4" 1-3/16-12" 9/16-18" 0.172" 0.980" 1.375"
FS2406-12-06 Steel 3/4" 3/8" 1-3/16-12" 11/16-16" 0.264" 1.030" 1.375"
FS2406-12-08 Steel 3/4" 1/2" 1-3/16-12" 13/16-16" 0.378" 1.090" 1.375"
FS2406-12-10 Steel 3/4" 5/8" 1-3/16-12" 1-14" 0.484" 1.160" 1.375"
FS2406-12-16 Steel 3/4" 1" 1-3/16-12" 1-7/16-12" 0.609" 1.240" 1.375"
FS2406-16-06 Steel 1" 3/8" 1-7/16-12" 11/16-16" 0.264" 1.09" 1-5/8"
FS2406-16-08 Steel 1" 1/2" 1-7/16-12" 13/16-16" 0.378" 1.150" 1.625"
FS2406-16-10 Steel 1" 5/8" 1-7/16-12" 1-14" 0.484" 1.260" 1.625"
FS2406-16-12 Steel 1" 3/4" 1-7/16-12" 1-3/16-12" 0.609" 1.300" 1.625"
FS2406-16-20 Steel 1" 1-1/4" 1-7/16-12" 1-11/16-12" 0.783" 1.330" 1.625"
FS2406-20-08 Steel - - - - - - -
FS2406-20-12 Steel 1-1/4" 3/4" 1-11/16-12" 1-3/16-12" 0.609" 1.320" 1.875"
FS2406-20-16 Steel 1-1/4" 1" 1-11/16-12" 1-7/16-12" 0.811" 1.514" 1.875"
FS2406-20-24 Steel 1-1/4" 1-1/2" 1-11/16-12" 2-12" 1.260" 1.514" 1.875"
FS2406-24-12 Steel 1-1/2" 3/4" 2-12" 1-3/16-12" 0.609" 1.320" 2-1/4"
FS2406-24-16 Steel 1-1/2" 1" 2-12" 1-7/16-12" 0.811" 1.340" 2.250"
FS2406-24-20 Steel 1-1/2" 1-1/4" 2-12" 1-11/16-12" 1.024" 1.340" 2.250"

FS2406-16-12-SS Stainless Steel 1" 3/4" 1-7/16-12" 1-3/16-12" 0.609" 1.300" 1.625"
