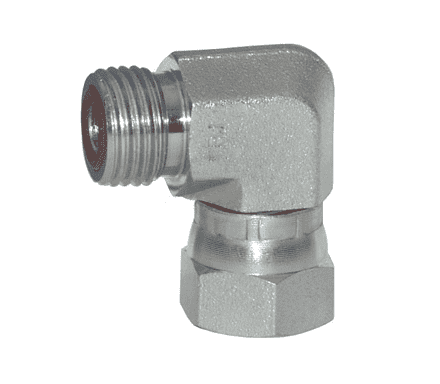

FS6500-4-4 Dixon Zinc Plated Steel 9/16"-18 Male Flat Face x 9/16"-18 Female Flat Face Swivel Nut 90 deg. Elbow

FS6500-4-4 Dixon Valve Zinc Plated Steel 9/16"-18 Male Flat Face x 9/16"-18 Female Flat Face Swivel Nut 90 deg. Elbow

Save $0.89 Save $0.89
$8.00
$8.00 - $8.00
$8.00
$7.11
$7.11 - $7.11
$7.11

Flat Face Fittings - Male Flat Face x Female Flat Face Swivel Nut 90 deg. Elbow - Zinc Plated Steel
Specifications for Variant SKU: FS6500-4-4 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male O-Ring Face Seal, 1/4in Male O-Ring Face Seal, Some Ends Match
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male Flat Face Female Flat Face Working Pressure Weight (Lbs.)
FS6500-4-4 9/16"-18 9/16"-18 6000 PSI 0.1400
FS6500-6-6 11/16"-16 11/16"-16 6000 PSI 0.2200
FS6500-8-8 13/16"-16 13/16"-16 6000 PSI 0.2900
FS6500-10-10 1"-14 1"-14 6000 PSI 0.5600
FS6500-12-12 1-3/16"-12 1-3/16"-12 6000 PSI 0.8400
FS6500-16-16 1-7/16"-12 1-7/16"-12 6000 PSI 1.2200
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
