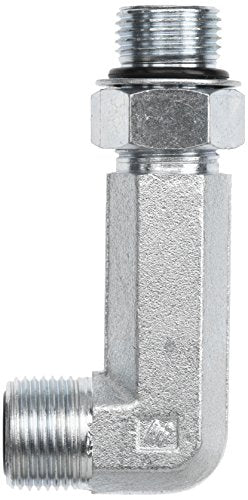

FS6801-L-16-16-NWO-FG by Brennan Inc. | -16 Male Face Seal x -16 Male Adjustable O-Ring Boss | 90° Elbow | Long | Forged Steel

FS6801-L-16-16-NWO-FG by Brennan Inc. | -16 Male Face Seal x -16 Male Adjustable O-Ring Boss | 90° Elbow | Long | Forged Steel

$28.49 - $28.49
$28.49
$36.15
$36.15 - $36.15
$36.15

Brennan Inc.
O-Ring Face Seal Fittings: FS6801-L-NWO - Male Face Seal x Male Adjustable O-Ring Boss 90° Elbow (Long)
Specifications for Variant SKU: FS6801-L-16-16-NWO-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1in Male O-Ring Face Seal, 1in Male O-Ring Boss
Material(s): Steel
Special Properties: Long
Part Number Material TubeO.D AThread BThread ADrill BDrill MLength NLength CHex JJFlats
FS6801-L-04-04-NWO-FG Steel 1/4" 9/16-18" 7/16-20" 0.172" 0.172" 0.850" 2.230" 0.625" 0.562"
FS6801-L-06-06-NWO-FG Steel 3/8" 11/16-16" 9/16-18" 0.264" 0.264" 0.980" 2.610" 0.750" 0.750"
FS6801-L-08-08-NWO-FG Steel 1/2" 13/16-16" 3/4-16" 0.378" 0.378" 1.100" 2.950" 0.938" 0.750"
FS6801-L-08-12-NWO-FG Steel 1/2" 13/16-16" 1-1/16-12" 0.379" 0.609" 1.320" 3.970" 1.375" 1.188"
FS6801-L-10-10-NWO-FG Steel 5/8" 1-14" 7/8-14" 0.484" 0.484" 1.310" 3.510" 1.062" 1.062"
FS6801-L-12-12-NWO-FG Steel 3/4" 1-3/16-12" 1-1/16-12" 0.609" 0.609" 1.470" 4.000" 1.375" 1.188"
FS6801-L-16-16-NWO-FG Steel 1" 1-7/16-12" 1-5/16-12" 0.811" 0.811" 1.640" 4.510" 1.625" 1.438"
FS6801-L-20-20-NWO-FG Steel 1-1/4" 1-11/16-12" 1-5/8-12" 1.024" 1.024" 1.760" 4.980" 1.875" 1.625"

FS6801-L-06-06-NWO-SS Stainless Steel 3/8" 11/16-16" 9/16-18" 0.264" 0.264" 0.980" 2.610" 0.750" 0.750"
