FSX-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Female SAE 45° Swivel | Carbon Steel

Name: FSX-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Female SAE 45° Swivel | Carbon Steel
Brand: Kurt Hydraulics
SKU: FSX-04-06-K2 Kurt
Price: 19.17 USD
Availability: InStock

Save $12.78

$31.95

$31.95 - $31.95

$31.95

$19.17

$19.17 - $19.17

$19.17

Kurt Hydraulics
FSX - 45° SAE Female Swivel

Specifications for Variant SKU: FSX-04-06-K2 Kurt
Series:	K2 Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Hose Barb, 3/8in Female SAE 45°
Material(s):	Carbon Steel

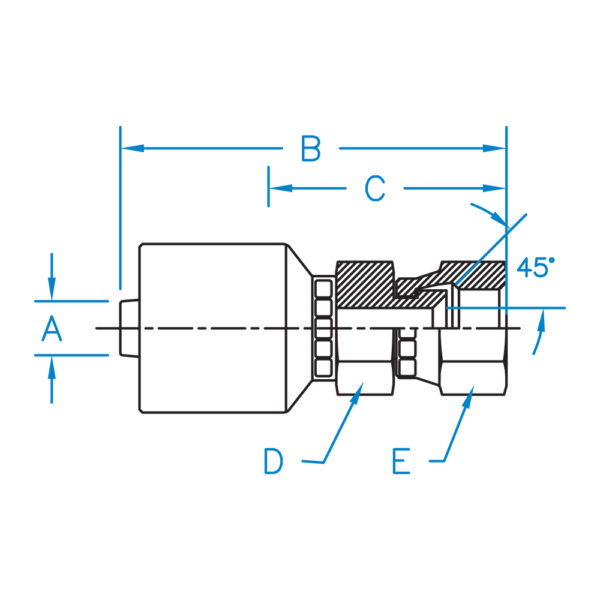

Part Number	Hose I.D. (in.)	B	C	D	E	Thread
FSX-04-06-K2	1/4"	2.32"	1.26"	5/8"	3/4"	5/8 – 18
FSX-06-06-K2	3/8"	2.65"	1.28"	11/16"	3/4"	5/8 – 18

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
