FSX-06-06-SST by Kurt Hydraulics | Female SAE 45° | Swivel | PTFE Coupling | for 3/8" Hose ID

Name: FSX-06-06-SST by Kurt Hydraulics | Female SAE 45° | Swivel | PTFE Coupling | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: FSX-06-06-SST Kurt
Price: 6.13 USD
Availability: InStock

Save $4.09

$10.22

$10.22 - $10.22

$10.22

$6.13

$6.13 - $6.13

$6.13

by Kurt Hydraulics
FSX-SST - 45 deg. SAE Female Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FSX-06-06-SST Kurt
Series:	SST Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Hose Barb, 3/8in Female SAE 45 Degree
Special Properties:	Swivel

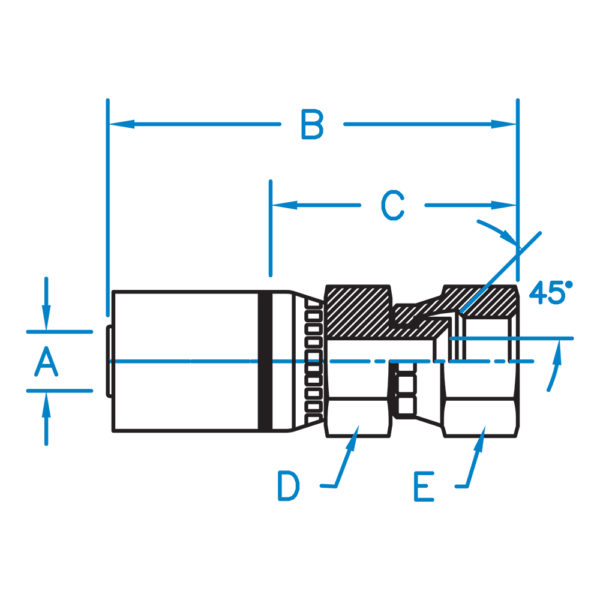

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FSX-06-06-SST	0.375	2.810	1.375	3/4	15/16	3/8"	5/8-18
FSX-12-12-SST	0.750	3.437	1.625	1-1/8	1-1/4	3/4"	1-1/16-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
