FSX90-05-06 by Kurt Hydraulics | Jump Size | Female SAE 45 Degree | 90 Degree Tube | Swivel | for 5/16" Hose ID

Save $1.93

$17.36

$17.36 - $17.36

$17.36

$15.43

$15.43 - $15.43

$15.43

by Kurt Hydraulics
FSX90 - 45 deg. SAE Female 90 deg. Bent Tube Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: FSX90-05-06 Kurt
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Hose Barb, 3/8in Female SAE 45 Flare
Special Properties:	Swivel, Jump Size

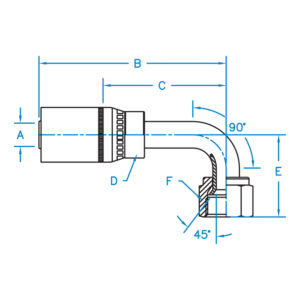

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FSX90-04-04	0.250	2.975	1.720	5/8H	0.830	9/16	1/4"	7/16-20
FSX90-04-05	0.250	N/A	N/A	5/8H	N/A	5/8	1/4"	1/2-20
FSX90-05-06	0.3125	N/A	N/A	5/8H	N/A	3/4	5/16"	5/8-18
FSX90-05-06	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FSX90-06-04	0.375	N/A	N/A	11/16	N/A	9/16	3/8"	7/16-20
FSX90-06-05	0.375	N/A	N/A	11/16	N/A	5/8	3/8"	1/2-20
FSX90-06-06	0.375	2.780	1.880	11/16	0.906	3/4	3/8"	5/8-18
FSX90-06-08	0.375	N/A	N/A	3/4	N/A	15/16	3/8"	3/4-16
FSX90-08-08	0.500	3.750	2.250	7/8H	1.130	15/16	1/2"	3/4-16
FSX90-08-10	0.500	3.250	1.750	7/8	1.230	1-1/16	1/2"	7/8-14
FSX90-10-12	0.625	N/A	N/A	1-1/8	N/A	1-1/4	5/8"	1-1/16-14
FSX90-12-12	0.750	3.875	1.980	1-1/8	2.310	1-1/4	3/4"	1-1/16-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
