FSX90-08-10 by Kurt Hydraulics | Jump Size | Female SAE 45 Degree | 90 Degree Tube | Swivel | for 1/2" Hose ID

FSX90-08-10 by Kurt Hydraulics | Jump Size | Female SAE 45 Degree | 90 Degree Tube | Swivel | for 1/2" Hose ID

Save $1.89 Save $1.89
$17.04
$17.04 - $17.04
$17.04
$15.15
$15.15 - $15.15
$15.15
by Kurt Hydraulics
FSX90 - 45 deg. SAE Female 90 deg. Bent Tube Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FSX90-08-10 Kurt
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Hose Barb, 5/8in Female SAE 45 Flare
Special Properties: Swivel, Jump Size

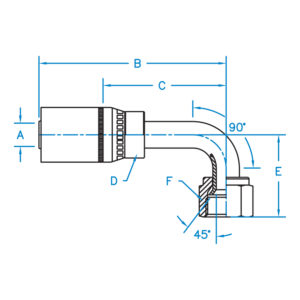

Part Number A B C D E F Hose ID
(In)		 Thread
FSX90-04-04 0.250 2.975 1.720 5/8H 0.830 9/16 1/4" 7/16-20
FSX90-04-05 0.250 N/A N/A 5/8H N/A 5/8 1/4" 1/2-20
FSX90-05-06 0.3125 N/A N/A 5/8H N/A 3/4 5/16" 5/8-18
FSX90-05-06 N/A N/A N/A N/A N/A N/A N/A N/A
FSX90-06-04 0.375 N/A N/A 11/16 N/A 9/16 3/8" 7/16-20
FSX90-06-05 0.375 N/A N/A 11/16 N/A 5/8 3/8" 1/2-20
FSX90-06-06 0.375 2.780 1.880 11/16 0.906 3/4 3/8" 5/8-18
FSX90-06-08 0.375 N/A N/A 3/4 N/A 15/16 3/8" 3/4-16
FSX90-08-08 0.500 3.750 2.250 7/8H 1.130 15/16 1/2" 3/4-16
FSX90-08-10 0.500 3.250 1.750 7/8 1.230 1-1/16 1/2" 7/8-14
FSX90-10-12 0.625 N/A N/A 1-1/8 N/A 1-1/4 5/8" 1-1/16-14
FSX90-12-12 0.750 3.875 1.980 1-1/8 2.310 1-1/4 3/4" 1-1/16-14


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
