FSXT-06-04 by Kurt Hydraulics | Jump Size | Female SAE 45° | Swivel | for 3/8" Hose ID

FSXT-06-04 by Kurt Hydraulics | Jump Size | Female SAE 45° | Swivel | for 3/8" Hose ID

Save $8.69 Save $8.69
$21.73
$21.73 - $21.73
$21.73
$13.04
$13.04 - $13.04
$13.04

by Kurt Hydraulics
FSXT - 45 deg. SAE Female Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: FSXT-06-04 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Female SAE 45 Flare
Special Properties: Swivel, Jump Size

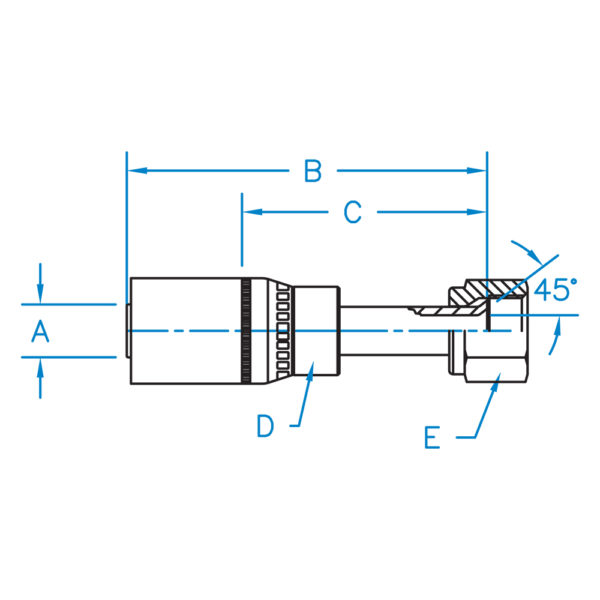

Part Number A B C D E Hose ID
(In)		 Thread
FSXT-04-04 0.250 N/A N/A N/A N/A 1/4" 7/16-20
FSXT-04-05 0.250 N/A N/A N/A N/A 1/4" 1/2-20
FSXT-06-04 0.375 N/A N/A N/A N/A 3/8" 7/16-20
FSXT-06-05 0.375 N/A N/A N/A N/A 3/8" 1/2-20
FSXT-06-06 0.375 3.853 2.353 11/16R 3/4 3/8" 5/8-18
FSXT-06-08 0.375 N/A N/A N/A N/A 3/8" 3/4-16
FSXT-08-08 0.500 4.09 2.59 7/8 15/16 1/2" 3/4-16
FSXT-08-10 0.500 4.38 2.88 7/8 1 1/2" 7/8-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
