FW-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female Weld Fitting | Carbon Steel

FW-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Female Weld Fitting | Carbon Steel

Save $5.55 Save $5.55
$13.88
$13.88 - $13.88
$13.88
$8.33
$8.33 - $8.33
$8.33

Kurt Hydraulics
FW - Female Weld Fitting Rigid
Specifications for Variant SKU: FW-04-04-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Weld End
Material(s): Carbon Steel

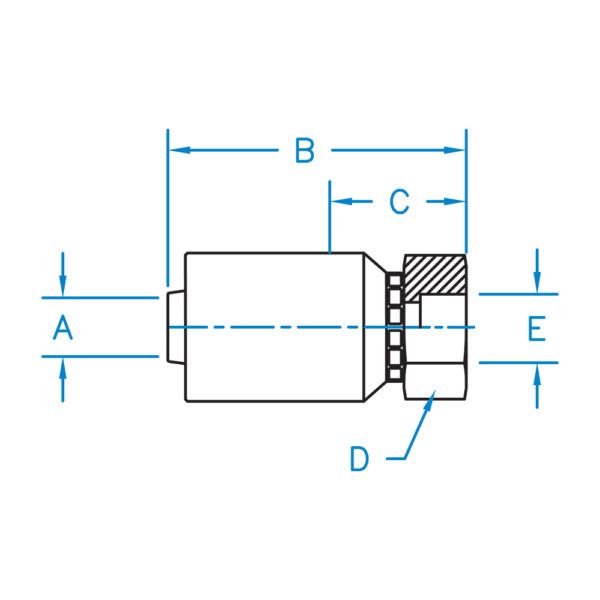

Part Number Hose I.D. (in.) B C D E Thread
FW-04-04-K2 1/4" 1.60" 0.54" 5/8" 0.25" N/A
FW-04-05-K2 1/4" 1.60" 0.54" 5/8" 0.31" N/A
FW-04-06-K2 1/4" 1.60" 0.54" 5/8" 0.37" N/A
FW-06-06-K2 3/8" 1.93" 0.56" 11/16" 0.38" N/A
FW-06-08-K2 3/8" 1.93" 0.56" 3/4" 0.50" N/A
FW-08-08-K2 1/2" 1.95" 0.61" 7/8" 0.50" N/A
FW-08-10-K2 1/2" 1.95" 0.61" 7/8" 0.62" N/A
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
