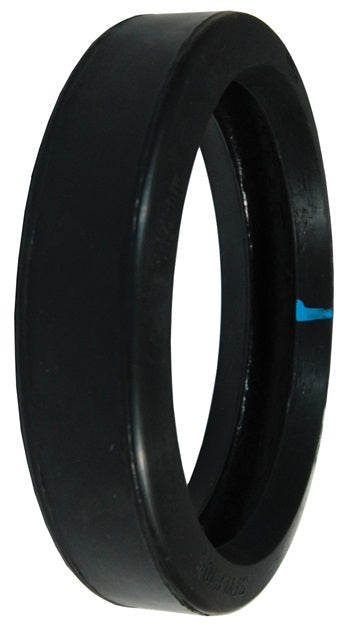

G1000V by Dixon Valve | Grooved Fitting Gasket | 10" Size | FKM

G1000V by Dixon Valve | Grooved Fitting Gasket | 10" Size | FKM

Save $59.68 Save $59.68
$205.29
$205.29 - $205.29
$205.29
$145.61
$145.61 - $145.61
$145.61

Dixon Valve
Grooved Fitting Gasket | FKM

Resistant to oxidizing acids, petroleum oils, hydraulic fluids, halogenated hydrocarbons and lubricants.
Specifications for Variant SKU: G1000V Dixon
Seal Material(s): Viton/FKM
Features:
  • Color code: black with blue stripe.
Construction:
  • Compound type is Fluoro Elastomer.
Safety Notes:
  • Use lubricant on gasket.
  • Check gasket color code to be certain it is recommended for the service intended.
  • For services not listed, contact Dixon for recommendations.
Specification:
  • Temperature range: -13°F to 350°F (-11°C to 177°C)
FKM
Part Number		 Size
G200V 2"
G300V 3"
G400V 4"
G600V 6"
G800V 8"
G1000V 10"
G1200V 12"
