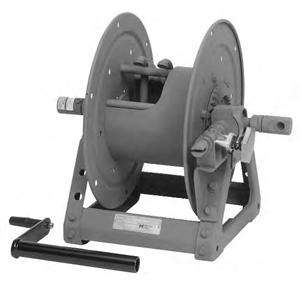

G2000 Hannay Manual Rewind Reel (G2020-17-18-8)

G2020-17-18-8 by Hannay | G2000 Series | Manual Rewind Reel

Save $438.67 Save $438.67
$1,096.67
$1,096.67 - $1,096.67
$1,096.67
$658.00
$658.00 - $658.00
$658.00



G2000 Manual Rewind Reels To handle dual 1/4" through 1/2" I.D. hose.
Specifications for Variant SKU: G2020-17-18-8 Hannay
Series: G2000 Series
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Applications:
  • Hydraulics
  • Air/Water
  • Spray Painting
Features:
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • Gear-drive crank rewind.
  • Pinion brake as standard.
  • Standard inlets 90 deg. ball bearing swivel joints 1/2" female NPT threads.
  • Standard outlets 1/2" female NPT threads.
  • Pressures to 3000 psi (207 bar)
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • Reels for use with oxygen/acetylene.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2"
O.D. (in) 5/8" 3/4" 7/8" A B F X
G2016-17-18-8 (two) 75' lengths (two) 50' lengths (two) 35' lengths 40 lbs. 13" 8" 21" 11.5"
G2020-17-18-8 (two) 125' lengths (two) 100' lengths (two) 50' lengths 42 lbs. 17" 12" 25" 15.5"
G2026-17-18-8 (two) 200' lengths (two) 150' lengths (two) 100' lengths 44 lbs. 23" 18" 31" 21.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
