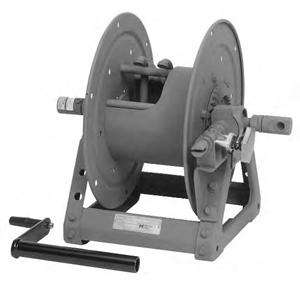

G2000 Hannay Manual Rewind Reel (G2026-17-18-8)

G2026-17-18-8 by Hannay | G2000 Series | Manual Rewind Reel

Save $52.37 Save $52.37
$710.37
$710.37 - $710.37
$710.37
$658.00
$658.00 - $658.00
$658.00



G2000 Manual Rewind Reels To handle dual 1/4" through 1/2" I.D. hose.
Specifications for Variant SKU: G2026-17-18-8 Hannay
Series: G2000 Series
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Applications:
  • Hydraulics
  • Air/Water
  • Spray Painting
Features:
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • Gear-drive crank rewind.
  • Pinion brake as standard.
  • Standard inlets 90 deg. ball bearing swivel joints 1/2" female NPT threads.
  • Standard outlets 1/2" female NPT threads.
  • Pressures to 3000 psi (207 bar)
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • Reels for use with oxygen/acetylene.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2"
O.D. (in) 5/8" 3/4" 7/8" A B F X
G2016-17-18-8 (two) 75' lengths (two) 50' lengths (two) 35' lengths 40 lbs. 13" 8" 21" 11.5"
G2020-17-18-8 (two) 125' lengths (two) 100' lengths (two) 50' lengths 42 lbs. 17" 12" 25" 15.5"
G2026-17-18-8 (two) 200' lengths (two) 150' lengths (two) 100' lengths 44 lbs. 23" 18" 31" 21.5"
