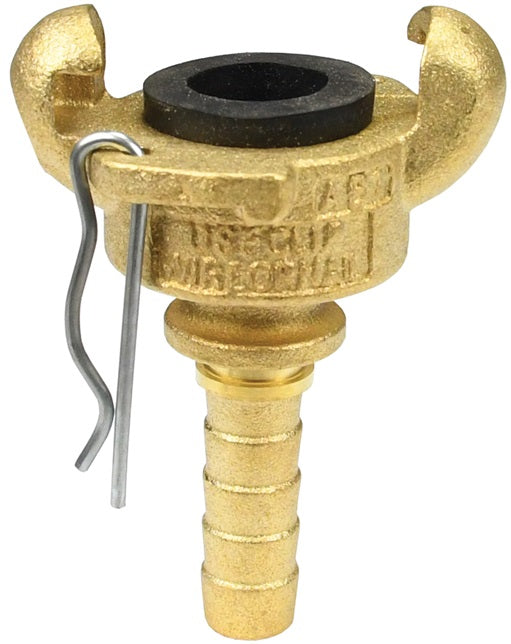

GAB6 Global Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Hose End | Chicago Style x 3/4" Hose ID | Brass

Name: GAB6 Global Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Hose End | Chicago Style x 3/4" Hose ID | Brass
Brand: Dixon
SKU: GAB6 Dixon
Price: 22.27 USD
Availability: InStock

Save $1.59

$23.86

$23.86 - $23.86

$23.86

$22.27

$22.27 - $22.27

$22.27

Dixon Valve
Global Air King® Universal Coupling | 2-Lug Hose End | Chicago Style x Hose Barb

Air King is for air and water service only.

Quantity

Specifications for Variant SKU: GAB6 Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 2-Lug Chicago
Material(s):	Brass
Seal Material(s):	Rubber

Features:
Use with Boss® clamps. Supplied with safety clip Supplied with rubber washer, part # AWR4
Specifications:
Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D. Pressure rating: 150 PSI at ambient temperature 70°F (21°C).
Use:
Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
Safety Notes:
Never use any Air King coupling for steam service! Air King is for air and water service ONLY. The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected. To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose. Caution: Must use safety clips.

Plated Steel Part Number	Brass Part Number	Size
-	GABH	3/8"
GAM1	GAB1	1/2"
GAM6	GAB6	3/4"
GAM11	GAB11	1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
