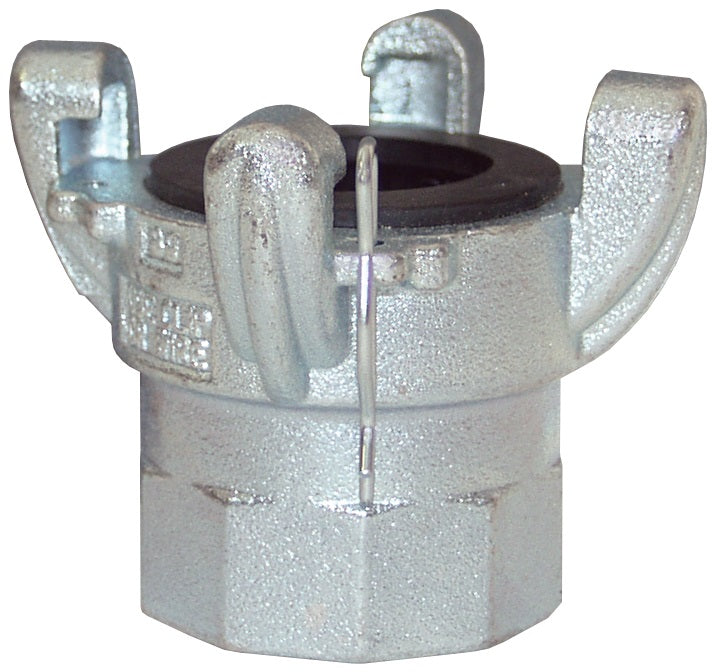

GAM18 Global Air King® by Dixon Valve | Pneumatic Fitting | 4-Lug Threaded End | Chicago Style x 1-1/4" Female NPT | Plated Steel

GAM18 Global Air King® by Dixon Valve | Pneumatic Fitting | 4-Lug Threaded End | Chicago Style x 1-1/4" Female NPT | Plated Steel

Save $0.78 Save $0.78
$14.22
$14.22 - $14.22
$14.22
$13.44
$13.44 - $13.44
$13.44

Dixon Valve
Global Air King® Universal Coupling | 4-Lug Hose End | Chicago Style x Female NPT

Air King is for air and water service only.
Specifications for Variant SKU: GAM18 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 4-Lug Chicago
Material(s): Plated Steel
Seal Material(s): Rubber
Features:
  • Supplied with safety clip.
  • Supplied with rubber washer, part # AWR14
Specifications:
  • Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D.
  • Pressure rating: 150 PSI at ambient temperature 70°F (21°C).
Use:
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
Safety Notes:
  • Never use any Air King coupling for steam service!
  • Air King is for air and water service ONLY.
  • The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • Caution: Must use safety clips.
Plated Steel
Part Number		 Size
GAM18 1-1/4"
GAM23 1-1/2"
GAM28 2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
