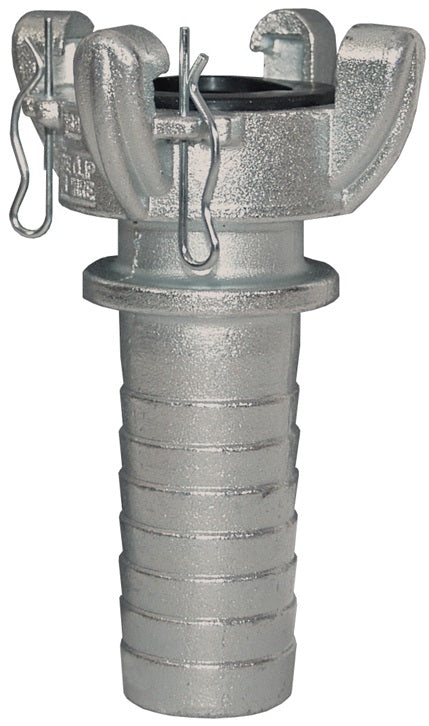

GAM21 Global Air King® by Dixon Valve | Pneumatic Fitting | 4-Lug Hose End | Chicago Style x 1-1/2" Hose ID | Plated Steel

GAM21 Global Air King® by Dixon Valve | Pneumatic Fitting | 4-Lug Hose End | Chicago Style x 1-1/2" Hose ID | Plated Steel

Save $13.06 Save $13.06
$32.65
$32.65 - $32.65
$32.65
$19.59
$19.59 - $19.59
$19.59

Dixon Valve
Global Air King® Universal Coupling | 4-Lug Hose End | Chicago Style x Hose Barb

Air King is for air and water service only.
Specifications for Variant SKU: GAM21 Dixon
Series: Global Air King Chicago
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Hose Barb, 4-Lug Chicago
Material(s): Plated Steel
Seal Material(s): Rubber
Compatible with the following Series: GS Black Multipurpose Air and Water Hose  |   GS Red Multipurpose Air and Water Hose
Features:
  • Supplied with safety clip.
  • Supplied with rubber washer, part # AWR14
Specifications:
  • Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D.
  • Pressure rating: 150 PSI at ambient temperature 70°F (21°C).
Use:
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
Safety Notes:
  • Never use any Air King coupling for steam service!
  • Air King is for air and water service ONLY.
  • The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • Caution: Must use safety clips.
Plated Steel
Part Number		 Size
GAM16 1-1/4"
GAM21 1-1/2"
GAM26 2"
