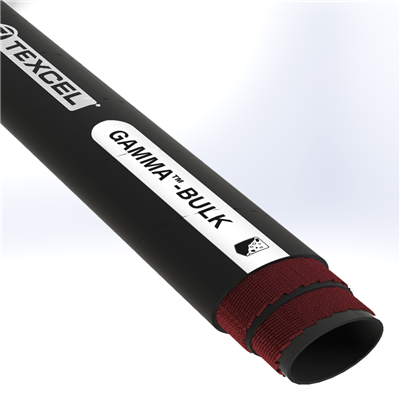

GBU75S1B-5-8 by Texcel | GAMMA™-BULK Series | Dry Bulk Material Discharge Hose | 5" Hose ID | 75 PSI | Black

GBU75S1B-5-8 by Texcel | GAMMA™-BULK Series | Dry Bulk Material Discharge Hose | 5" Hose ID | 75 PSI | Black

$37.28 - $3,106.50
$37.28
$33.14
$33.14 - $2,761.33
$33.14

GAMMA™ by Texcel
BULK Series | Dry Bulk Material Discharge Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GBU75S1B-5-8-100- Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-BULK Series
Hose Color(s): Black
Internal Diameter: 5in
Outer Diameter: 5.80in
Tubing Construction: Natural Rubber/SBR Blend
Cover Construction: Natural Rubber/SBR Blend
Technical Data:
Description: High heat-resisting EPDM blower hose made with premium-grade materials for reliable service life when connecting the blower to flow lines on dry-bulk trailers. Tube: Black, high heat-resisting EPDM
Cover: Black or brown*, smooth high heat-resisting EPDM Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -40°F to +300°F continuous; 350°F intermittent
Branding: TEXCEL® GAMMA™ - HEAT - HOT AIR BLOWER HOSE 150 PSI W.P.
Part Number Hose I.D. Tube Gauge Hose OD Working Pressure (psi) Number of Plies Lbs./Ft
GBU75S1B-4-4 4" 1/8" 4-28/64" 75 2 1.72 lbs
GBU75S1B-4-6 4" 3/16" 4-40/64" 75 2 2.20 lbs
GBU75S1B-4-8 4" 1/4" 4-51/64" 75 2 2.61 lbs
GBU75S1B-4-12 4" 3/8" 5-3/64" 75 2 2.96 lbs
GBU75S1B-5-4 5" 1/8" 5-30/64" 75 2 2.27 lbs
GBU75S1B-5-6 5" 3/16" 5-40/64" 75 2 2.75 lbs
GBU75S1B-5-8 5" 1/4" 5-51/64" 75 2 3.25 lbs
