GC12-12x12 Couplamatic Grip Crimp Coupling - ORB - Male Swivel - 3/4" Hose ID - 1-1/16x12 Thread Size

GC12-12x12 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x 1-1/16x12 Thread Size ORB Male Swivel | Straight | Trivalent Zinc Plating

Save $2.38 Save $2.38
$21.39
$21.39 - $21.39
$21.39
$19.01
$19.01 - $19.01
$19.01

Couplamatic Systems Inc.
Grip Crimp Series - ORB - Male Swivel
Specifications for Variant SKU: GC12-12x12 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Boss, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

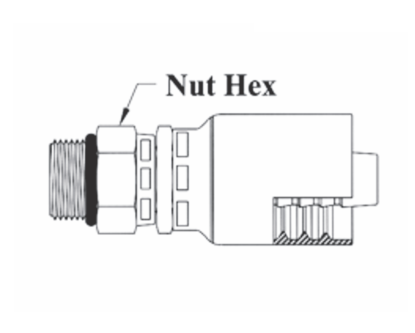

Part Number Hose ID Thread Size Tube OD Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC12-4x4 1/4" 7/16x20 1/4" 5/8" - -
GC12-6x6 3/8" 9/16x18 3/8" 7/8" 6G-6MBX 10G43-6-6
GC12-6x8 3/8" 3/4x16 1/2" 7/8" 6G-8MBX 10G43-8-6
GC12-8x8 1/2" 3/4x16 1/2" 7/8" 8G-8MBX 10G43-8-8
GC12-8x10 1/2" 7/8x14 5/8" 1" 8G-10MBX 10G43-10-8
GC12-12x12 3/4" 1-1/16x12 3/4" 1-1/4" - 10G43-12-12
GC12-16x16 1" 1-5/16x12 1" 1-1/2" - -

- Swivel for installation purposes only. Leakage may occur at low pressure.

- The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
