GC26-12x12 Couplamatic Grip Crimp Coupling - JIC Seat - 90° Female Swivel - 3/4" Hose ID - 1-1/16x12 Thread Size

GC26-12x12 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x 1-1/16x12 Thread Size JIC Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 5

Save $11.24

$101.17

$101.17 - $101.17

$101.17

$89.93

$89.93 - $89.93

$89.93

Couplamatic Systems Inc.
Grip Crimp Series - JIC/SAE Dual Seat - 90° Female Swivel

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: GC26-12x12 Couplamatic \| 5 \|
Series:	Grip Crimp Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

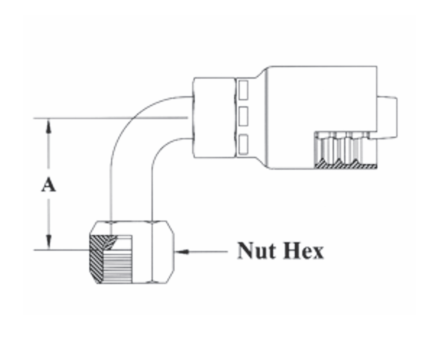

Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Gates Mega	Parker 43
GC26-4x4	1/4"	7/16x20	1/4"	0.81"	9/16"	4G-4FJX90M	13943-4-4
GC26-4x5	1/4"	1/2x20	5/16"	0.83"	5/8"	4G-5FJX90M	13943-5-4
GC26-4x6*	1/4"	9/16x18	3/8"	0.91"	11/16"	4G-6FJX90M	13943-6-4
GC26-6x4	3/8"	7/16X20	1/4"	0.81"	9/16"	-	13943-4-6
GC26-6x5	3/8"	1/2x20	5/16"	0.83"	5/8"	-	13943-5-6
GC26-6x6*	3/8"	9/16x18	3/8"	0.91"	11/16"	6G-6FJX90M	13943-6-6
GC26-6x8	3/8"	3/4x16	1/2"	1.15"	7/8"	6G-8FJX90M	13943-8-6
GC26-8x8	1/2"	3/4x16	1/2"	1.15"	7/8"	8G-8FJX90M	13943-8-8
GC26-8x10	1/2"	7/8x14	5/8"	1.23"	1"	8G-10FJX90M	13943-10-8
GC26-10x10	5/8"	7/8x14	5/8"	1.23"	1"	10G-10FJX90S	13943-10-10
GC26-10x12*	5/8"	1-1/16x12	3/4"	1.88"	1-1/4"	10G-12FJX90S	13943-12-10
GC26-12x10	3/4"	7/8x14	5/8"	1.23"	1"	12G-10FJX90M	13943-10-12
GC26-12x12*	3/4"	1-1/16x12	3/4"	1.88"	1-1/4"	12G-12FJX90M	13943-12-12
GC26-12x16*	3/4"	1-5/16x12	1"	2.20"	1-1/2"	-	13943-12-12
GC26-16x16*	1"	1-5/16x12	1"	2.20"	1-1/2"	16G-16FJX90M	13943-12-12
GC26-20x20	1-1/4"	1-5/8x12	1-1/4"	3.31"	2"	20G-20FJX90M	13943-20-20

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
