GC28-6x8 Couplamatic Grip Crimp Coupling - Tube Repair Coupling - 3/8" Hose ID - 3/4x16 Thread Size

GC28-6x8 by Couplamatic | Grip Crimp Coupling | Tube Repair Coupling | 3/8" Hose ID x 3/4x16 Thread Size | Straight | Trivalent Zinc Plating

Save $0.90

$8.12

$8.12 - $8.12

$8.12

$7.22

$7.22 - $7.22

$7.22

Couplamatic Systems Inc.
Grip Crimp Series - Tube Repair Couplings

Quantity

Specifications for Variant SKU: GC28-6x8 Couplamatic
Series:	Grip Crimp Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Tube Compression, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

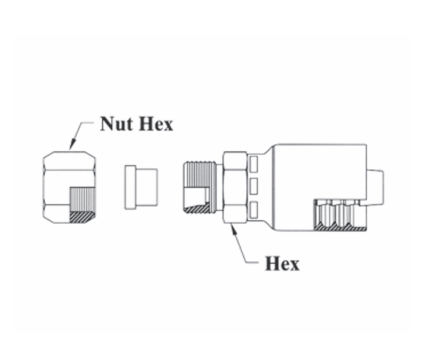

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Gates Mega	Parker 43
GC28-4x4	1/4"	7/16x20	1/4"	9/16"	9/16"	4G-4MFA	11143-4-4
GC28-4x5	1/4"	1/2x20	5/16"	9/16"	5/8"	4G-5MFA	11143-5-4
GC28-6x5	3/8"	1/2x20	5/16"	11/16"	5/8"	6G-5MFA	11143-5-6
GC28-6x6	3/8"	9/16x18	3/8"	11/16"	11/16"	6G-6MFA	11143-6-6
GC28-6x8	3/8"	3/4x16	1/2"	3/4"	7/8"	-	-
GC28-8x8	1/2"	3/4x16	1/2"	7/8"	7/8"	8G-8MFA	11143-8-8
GC28-8x10	1/2"	7/8x14	5/8"	7/8"	15/16"	8G-10MFA	11143-10-8
GC28-12x12	3/4"	1-1/16x12	3/4"	1-1/8"	1-1/4"	12G-12MFA	11143-12-12
GC28-16x16	1"	1-5/16x12	1"	1-3/8"	1-1/2"	16G-16MFA	11143-16-16

Part NumberNut	Part NumberSleeve	Tube Size
718x4	719x4	1/4"
718x5	719x5	5/16"
718x6	719x6	3/8"
718x8	719x8	1/2"
718x10	719x10	5/8"
718x12	719x12	3/4"
718x16	719x16	1"

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
