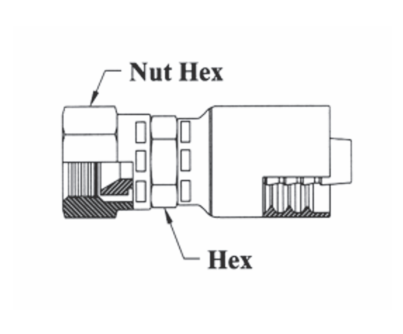

GC39-4x14 Couplamatic Grip Crimp Coupling - Komatsu 30° Flare - Female Swivel - 1/4" Hose ID - M14x1.5 Thread Size

GC39-4x14 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x M14x1.5 Thread Size Female Swivel Komatsu 30° Flare | Straight | Trivalent Zinc Plating

Save $0.89 Save $0.89
$8.01
$8.01 - $8.01
$8.01
$7.12
$7.12 - $7.12
$7.12

Couplamatic Systems Inc.
Grip Crimp Series - Komatsu 30° Flare - Female Swivel
Specifications for Variant SKU: GC39-4x14 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 14mm Female Komatsu, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC39-4x14 1/4" M14x1.5 5/8" 3/4" 4G-4FKX 1MU43-4-4
GC39-6x18 3/8" M18x1.5 11/16" 7/8" 6G-6FKX 1MU43-6-6
GC39-8x22 1/2" M22x1.5 7/8" 1" 8G-8FKX 1MU43-8-8
GC39-10x24 5/8" M24x1.5 1" 1-1/4" 10G-10FKX 1XU43-10-10
GC39-12x30 3/4" M30x1.5 1-1/8" 1-3/8" 12G-12FKX 1XU43-12-12
GC39-16x33 1" M33x1.5 1-3/8" 1-1/2" 16G-16FKX 1XU43-16-16
GC39-20x36 1-1/4" M36x1.5 1-11/16" 1-7/8" - 1XU43-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
