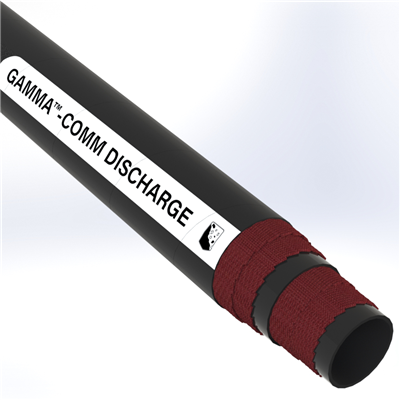

GCOMM-D-B1-3.0-100N by Texcel | GAMMA™-COMM DISCHARGE Series | Commodity Discharge Hose | 3" Hose ID | 125 PSI | Black

$34.26 - $2,854.42

$34.26

$24.47

$24.47 - $2,038.87

$24.47

GAMMA™ by Texcel
COMM DISCHARGE Series | Commodity Discharge Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: GCOMM-D-B1-3.0-100N Texcel \| 100 \|
Brand:	GAMMA™
Series:	GAMMA™-COMM DISCHARGE Series
Hose Color(s):	Black
Internal Diameter:	3in
Outer Diameter:	3.72in
Tubing Construction:	Natural Rubber/SBR Blend
Cover Construction:	SBR

Technical Data:
Description:	Soft-wall hose designed with a high abrasion-resistant tube. Ideal for applications where the discharging of wet or dry abrasive media is required.	Tube:	Black, abrasion-resistant NR/SBR, static-dissipating materials
Cover:	Black, SBR	Reinforcement:	High tensile tire cord plies
Safety Factor:	4:1	Temperature:	-40°F to +180°F
Branding:	TEXCEL® GAMMA™-COMM DISCH - BULK COMMODITY DISCHARGE HOSE STATIC CONDUCTIVE TUBE XXX PSI W.P.

Part Number	Hose ID	Hose OD	Tube Gauge	Working Pressure (psi)	Number of Plies	Lbs./Ft.
GCOMM-D-B1-2.0-100N	2"	2-45/64"	3/16"	150 psi	2	1.51 lbs
GCOMM-D-B1-2.5-100N	2-1/2"	3-13/64"	3/16"	125 psi	2	1.82 lbs
GCOMM-D-B1-3.0-100N	3"	3-46/64"	3/16"	125 psi	2	2.20 lbs
GCOMM-D-B1-4.0-100N	4"	4-45/64"	3/16"	100 psi	2	2.79 lbs
GCOMM-D-B1-4.5-100N	4-1/2"	5-13/64"	1/4"	75 psi	2	3.40 lbs
GCOMM-D-B1-5.0-100N	5"	5-45/64"	1/4"	75 psi	2	3.78 lbs
GCOMM-D-B1-6.0-100N	6"	6-45/64"	1/4"	75 psi	2	4.06 lbs
