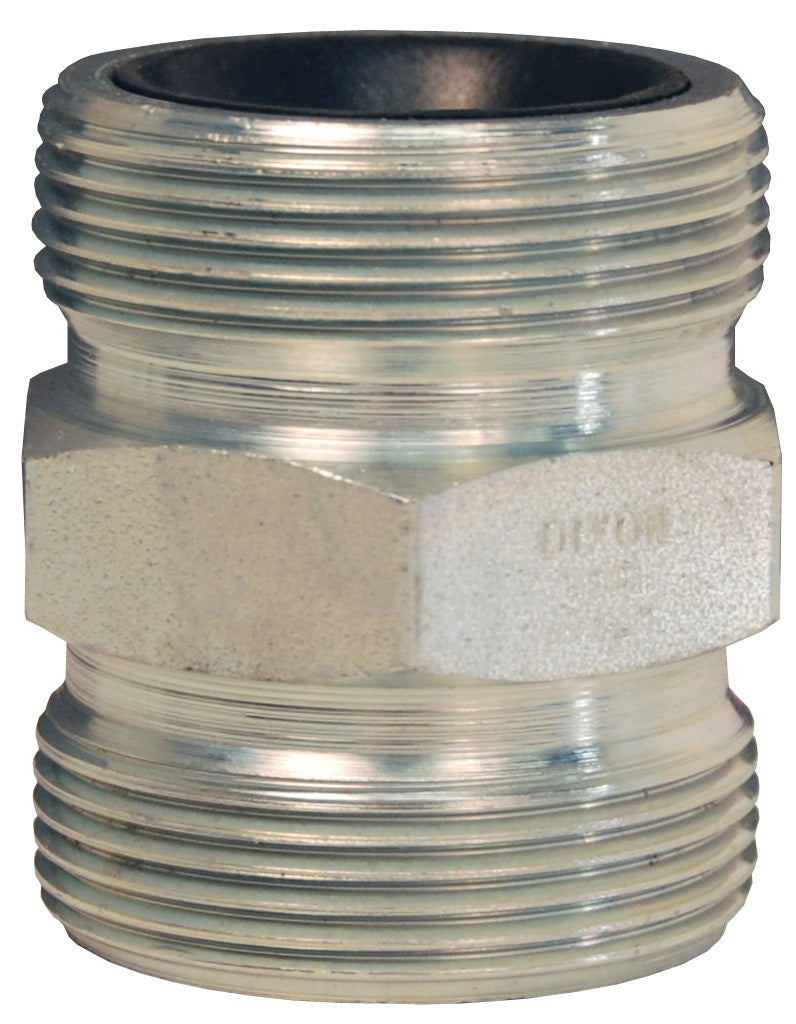

GDB28 by Dixon Valve | Boss® Ground Joint | Double Spud | 2" Size | Wing Nut Thread x Wing Nut Thread | Plated Iron

Save $4.53

$48.57

$48.57 - $48.57

$48.57

$44.04

$44.04 - $44.04

$44.04

Dixon Valve
Boss® | Boss Ground Joint Double Spud

Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1" ID.

Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose. Consult Dixon for specific media capabilities.

Quantity

Specifications for Variant SKU: GDB28 Dixon
Brand:	Boss
Shape (Orientation):	Straight

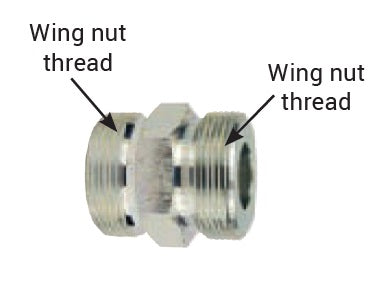

Ends Configuration:	2in GJ Wing Nut Thread, 2in GJ Wing Nut Thread
Material(s):	Iron
Seal Material(s):	Misc. Polymer

Features:
The spud part of the coupling serves as one half of the Boss Ground Joint connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut on the spud. When connected they achieve both a mechanical, and a pressure seal. Positive metal-to-polymer seal. Leakproof seal forms when the metal head of the stem makes contact with the patented polymer seat in the spud. The non-metallic polymer seat resists most chemicals found in manufacturing facilities, reference the Corrosion Resistance Chart for additional information. Easy to seal.
Use:
Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet. Use with Boss Ground Joint fittings.
Safety Notes:
Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated. Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Specifications:
Recommended for steam service up to 450°F (232°C).

Plated Steel Part Number	Plated Iron Part Number	Size
GDB3	-	1/2"
GDB13	-	3/4" and 1"
-	GDB23	1-1/4" and 1-1/2"
-	GDB28	2"
-	GDB33	2-1/2"
-	GDB38	3"
