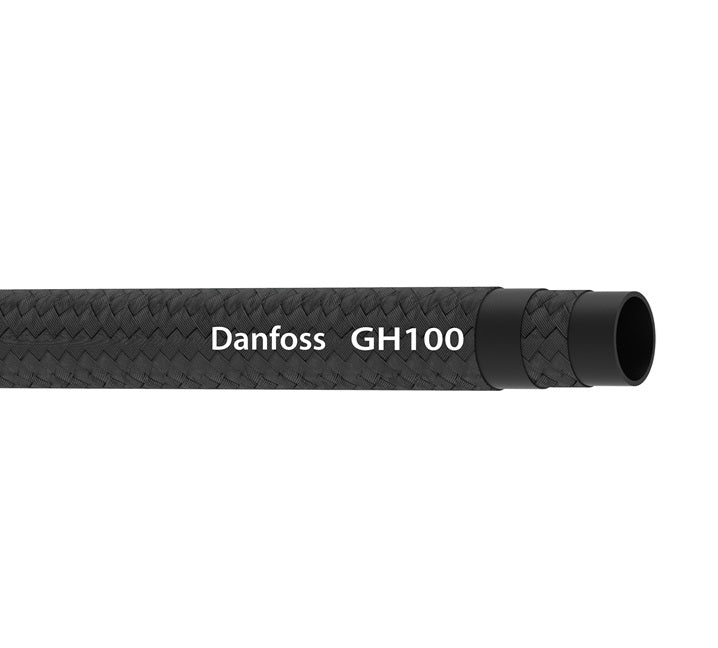

GH100-4 Aeroquip by Danfoss | Diesel & Biodiesel Transportation Hose | 0.25" ID

GH100-4 Aeroquip by Danfoss | Diesel & Biodiesel Transportation Hose | 0.25" ID

$5.71 - $5.71
$5.71
$5.71 - $5.71
$5.71

Aeroquip® by Danfoss
GH100 Series | Diesel & Biodiesel Transportation Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GH100-4 Danfoss
Brand: Aeroquip
Series: GH100 Series
Hose Color(s): Black
Internal Diameter: 0.25in
Outer Diameter: 0.53in
Tubing Construction: AQP Elastomer
Cover Construction: Polyester Textile Braid
Hose Properties:
Application: High temperature, low pressure oil.
Engine fuel systems for diesel and biodiesel use.
Low pressure oil applications, including synthetics for transmission oil cooler applications.
Qualified with ultra-lowsulfur diesel (ULSD), every blend of biodiesel up to B100, and a variety of synthetic oils		 SAE Ratings: N/A
Other Ratings: Meets: ASTM D380, ASTM D6751, EN412, EN2240 Tube: Eaton Developed HNBR
Reinforcement: Aramid Braid Cover: Fiber Braid
Operating Parameters: Up to B20: -40°F to +302°F (-40°C to +150°C)
Up to B100: -40°F to +257°F (-40°C to +125°C)
Oil Transmission Application: -40°F to 320°F (-40°C to +165°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum service Weight
DN mm in mm in bar psi bar psi mm in kPa in Hg. kg/m lbs/ft
GH100-4 6 6,4mm 0.25" 13,3mm 0.53" 28,0 bar 400 psi 112,0 bar 1600 psi 31,8mm 1.25" 94,8kPa 28 in Hg. 0,12 kg/m 0.08 lbs/ft
GH100-6 10 9,5mm 0.38" 15,9mm 0.62" 28,0 bar 400 psi 112,0 bar 1600 psi 38,1mm 1.50" 94,8kPa 28 in Hg. 0,15 kg/m 0.10 lbs/ft
GH100-8 12 12,7mm 0.50" 19,1mm 0.75" 28,0 bar 400 psi 112,0 bar 1600 psi 50,8mm 2.00" 94,8kPa 28 in Hg. 0,19 kg/m 0.13 lbs/ft
GH100-10 16 15,9mm 0.63" 23,1mm 0.91" 24,0 bar 350 psi 96,0 bar 1400 psi 63,5mm 2.50" 94,8kPa 28 in Hg. 0,27 kg/m 0.18 lbs/ft
GH100-12 19 19,2mm 0.75" 27,9mm 1.10" 24,0 bar 350 psi 96,0 bar 1200 psi 76,2mm 3.00" 94,8kPa 28 in Hg. 0,30 kg/m 0.20 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
