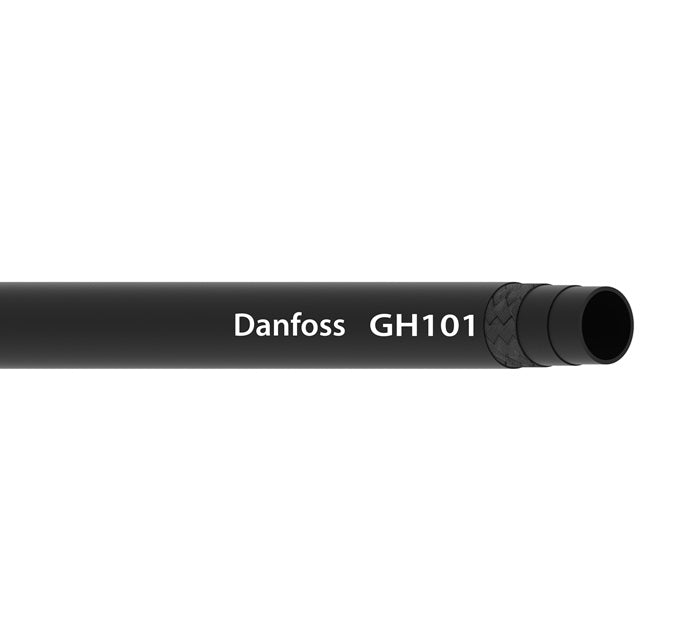

GH101-8 Aeroquip by Danfoss | Diesel & Biodiesel Transportation Hose | CPE Rubber Cover | 0.50" ID

GH101-8 Aeroquip by Danfoss | Diesel & Biodiesel Transportation Hose | CPE Rubber Cover | 0.50" ID

$7.95 - $7.95
$7.95
$7.95 - $7.95
$7.95

Aeroquip® by Danfoss
GH101 Series | Diesel & Biodiesel Transportation Hose (CPE Rubber Cover)

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GH101-8 Danfoss
Brand: Aeroquip
Series: GH101 Series
Hose Color(s): Black
Internal Diameter: 0.50in
Outer Diameter: 0.83in
Tubing Construction: Nitrile
Cover Construction: CPE Rubber
Hose Properties:
Application: High temperature, low pressure oil.
Engine fuel systems for diesel and biodiesel use.
Low pressure oil applications, including synthetics for transmission oil cooler applications.		 SAE Ratings: N/A
Other Ratings: Meets: ASTM D380, ASTM D6751, EN412, EN2240 Tube: Eaton Developed HNBR
Reinforcement: Aramid Braid Cover: CPE Rubber
Operating Parameters: Up to B20: -40°F to +302°F (-40°C to +150°C)
Up to B100: -40°F to +257°F (-40°C to +125°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
DN mm in mm in bar psi bar psi mm in kPa in. Hg. kg/m lbs/ft
GH101-4 7 6,4mm 0.25" 14,6mm 0.57" 28,0 bar 400 psi 112,0 bar 1600 psi 31,8mm 1.25" 94,8kPa 28 in. Hg. 0,14 kg/m 0.09 lbs/ft
GH101-6 10 9,5mm 0.38" 17,4mm 0.59" 28,0 bar 400 psi 112,0 bar 1600 psi 38,1mm 2.00" 94,8kPa 28 in. Hg. 0,18 kg/m 0.12 lbs/ft
GH101-8 12 12,7mm 0.50" 21,2mm 0.83" 28,0 bar 400 psi 112,0 bar 1600 psi 50,8mm 2.50" 94,8kPa 28 in. Hg. 0,25 kg/m 0.17 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
